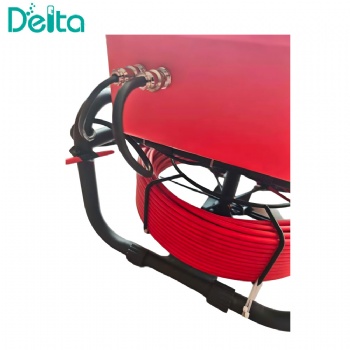

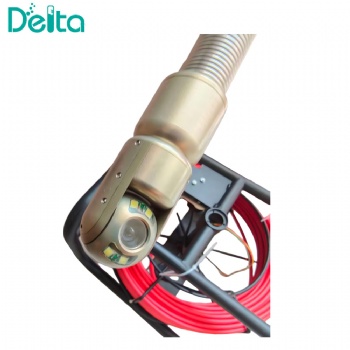

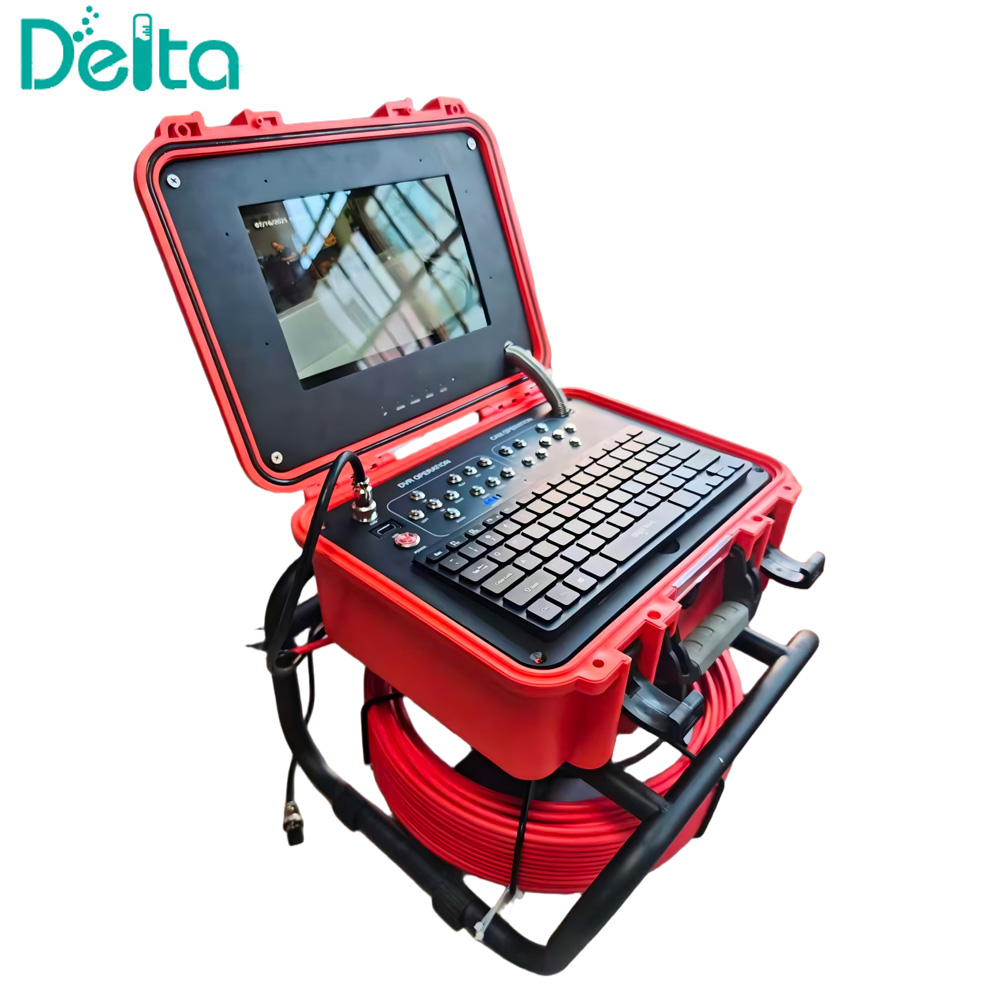

HYJJ-30 30mm HD Portable Pipe Video Inspection Camera System, 360 Degree Rotating Sewer Inspection Camera

This HD pipe inspection camera system is with compact, rugged, portable and humanized design for efficient operation in sewer, drain, duct ,chimney, milk pipes, water mains, central air conditioning, heating system, pipe sventilation systems, plumbing related sites and where a pipe inspection camera is required.

HYJJ-30 30mm HD Portable Pipe Video Inspection Camera System, 360 Degree Rotating Sewer Inspection Camera

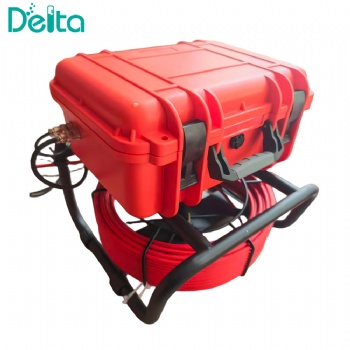

HYJJ-30 30mm HD Portable Pipe Video Inspection Camera System.jpg

Introduction:

HYJJ-30 30mm HD Portable Pipe Video Inspection Camera System, 360 Degree Rotating Sewer Inspection Camera is with compact, rugged, portable and humanized design  for efficient operation in sewer,  drain, duct ,chimney, milk pipes, water mains, central air conditioning, heating system, pipe sventilation systems, plumbing related sites and where a pipe inspection camera is required.



Application Fields:

1. Water Supply Pipes

2. Air Conditioning Pipes

3. Cable Pipes

4. Pipe Vacuum Systems

5. Lead Industry (PLUNBIN) Pipes

6. Buildings

7. Underground Pipelines

8. Rescue Operations In Confined Spaces

9. Exploration Of Underground Caves In The Wild

10. And Research On Underwater Riverbeds



Features:

1.10.1-inch High-definition And High-brightness Display Screen;
2. One-click Start Of Work;
3. Small-diameter High-definition Spherical Camera (adaptable to small-diameter pipes);
4. Adjustable Brightening Lights, Focusing, And Automatic Rotation;
5. Video Recording And Photography Function, Standard 32G Storage;
6.. Text Input Via Keyboard Can Be Synchronously Saved In Photos And Videos.
7. Equipped with depth Meter And Depth Reset Function;
8. With 8x Magnification/Reduction Function Of The Screen;
9. With Battery Level Display Function;
10. Rechargeable Large-capacity Lithium Battery;

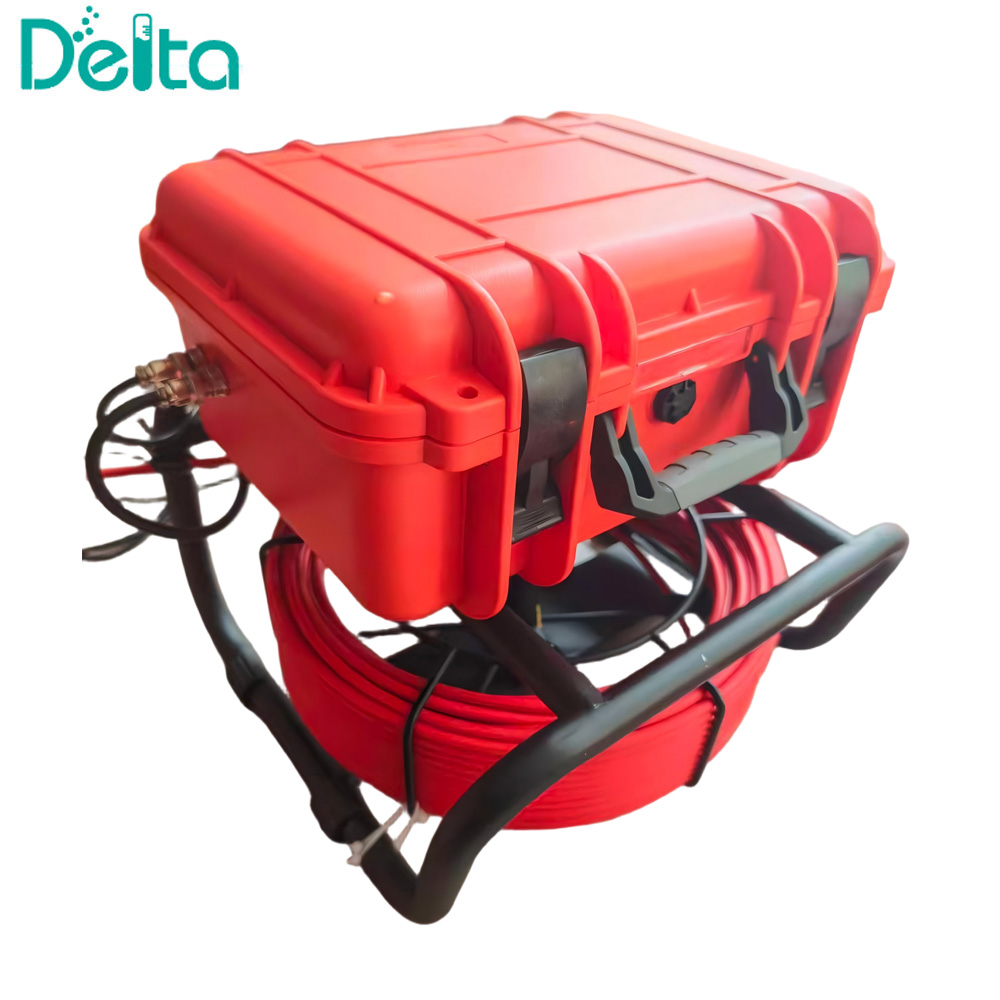

11. Waterproof And Durable Suitcase;


Detailed Configuration:

No.PartsParameters
Display
1

Size

10.1-inch

2

Resolution

1920*1080

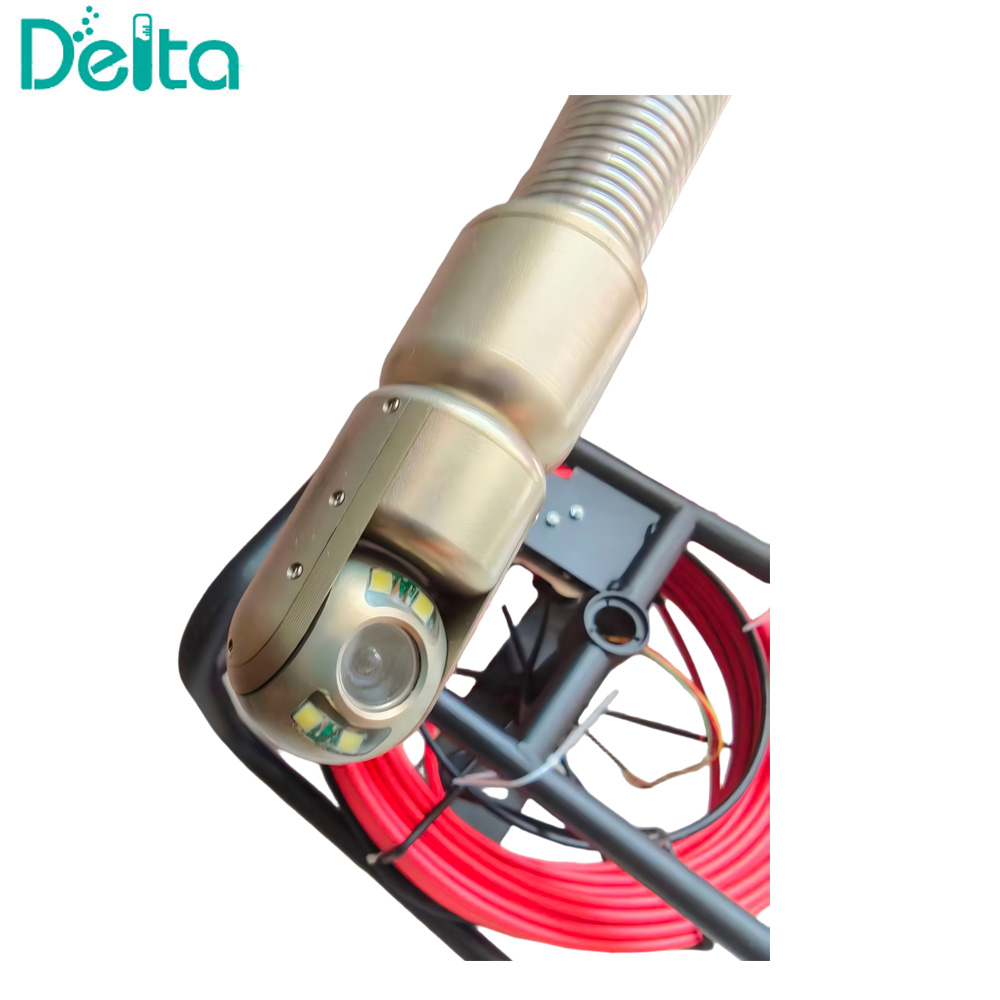

Camera
3

Siz

30mm/40m

4

Material

Aluminum

5PixelHD 1080P
6Horizontal RotationHorizontal 360° Rotation
7

Vertical Rotation

Vertical 180° Pitch

8

Adjustable Focu

Yes

9

Light

Φ30mm (4 LED) / Φ40mm (6 LED)

10

Adjustable Lights

Six Adjustable Levels

11Detachable Camera

Yes

12

Replaceable Camera

Interchangeable 30mm/40mm Camera

13Waterproof

Yes

14

Applicable Diameter Of The Pipe

30mm camera (≥35mm)

40mm camera (≥45mm)

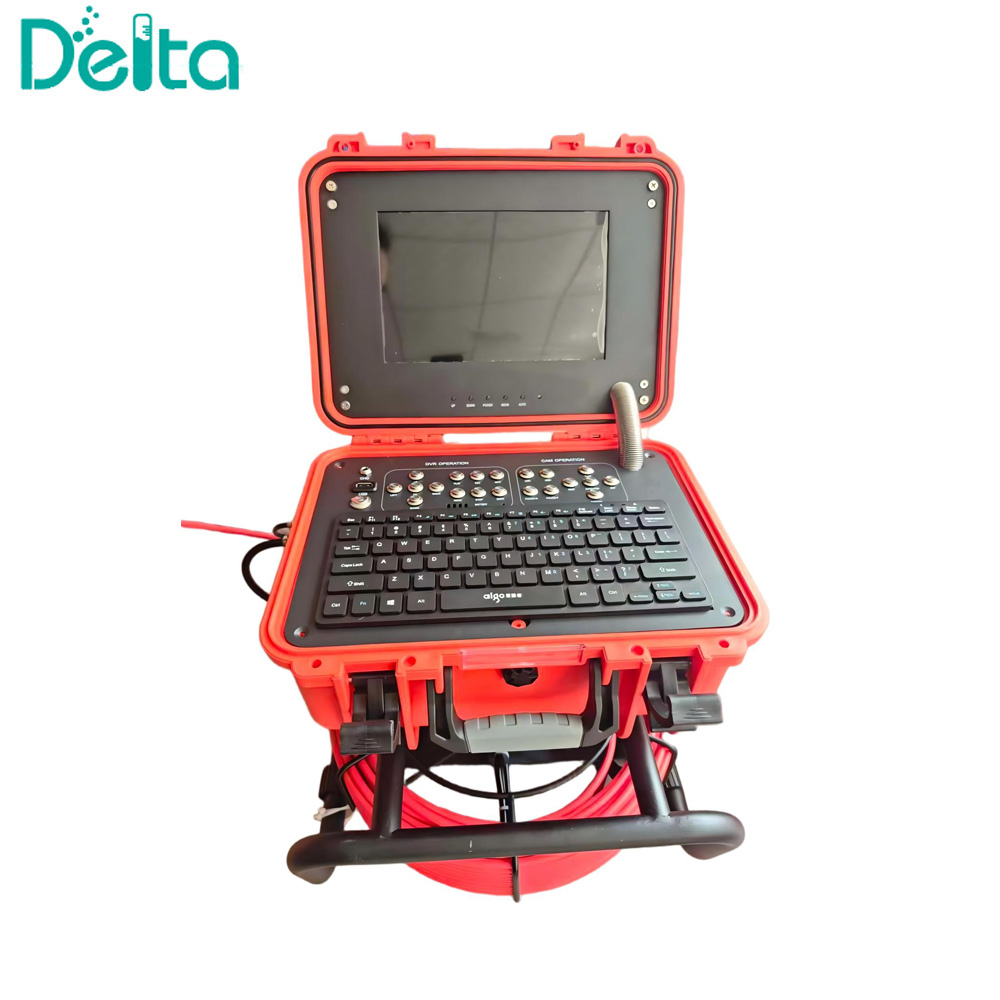

Main Control Box
15

Material

ABS Main Control Box

16

Colour

Red

17Camera Functions

Horizontal 360° Rotation Vertical 180° Pitch

Adjustable Lighting

Adjustable Focal Length

Autopan Automatic Rotatio

18

Control Box Functions

Take Videoes

Take Photos

Text Input

Depth Meter (screen display)

Depth To Zero

8x Magnification/Reduction Functio

19

Storage Method

32G Standard Storage

20

Charging Interface Type

DC Interface

21

Battery Display Function

Yes

22

Battery Capacity

7800mAh

23Detachable Box

Detachable Main Control Box

Cable
24

Diameter

Φ7mm (≤60m) / Φ9mm (60mL120m)

25

Colour

Red
26

Features

Cold-proof, Waterproof, Anti-corrosion, Tensile Resistant

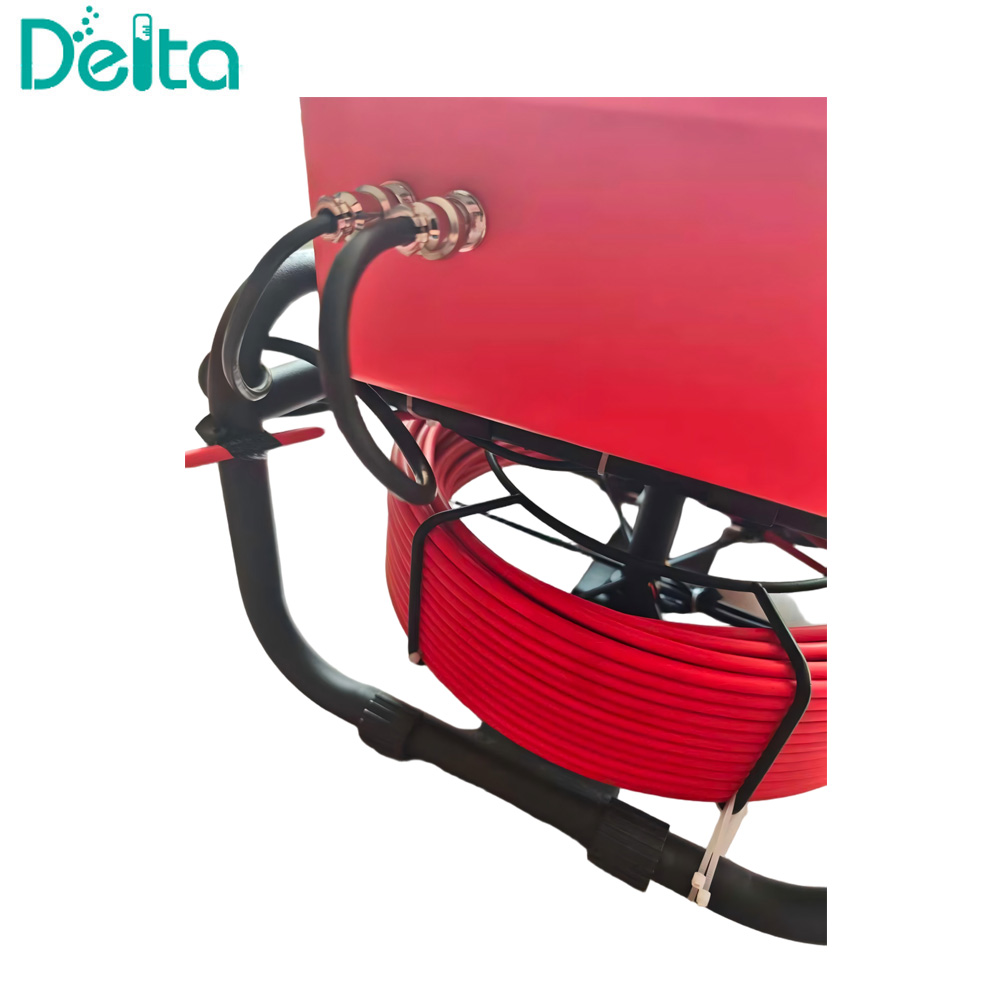

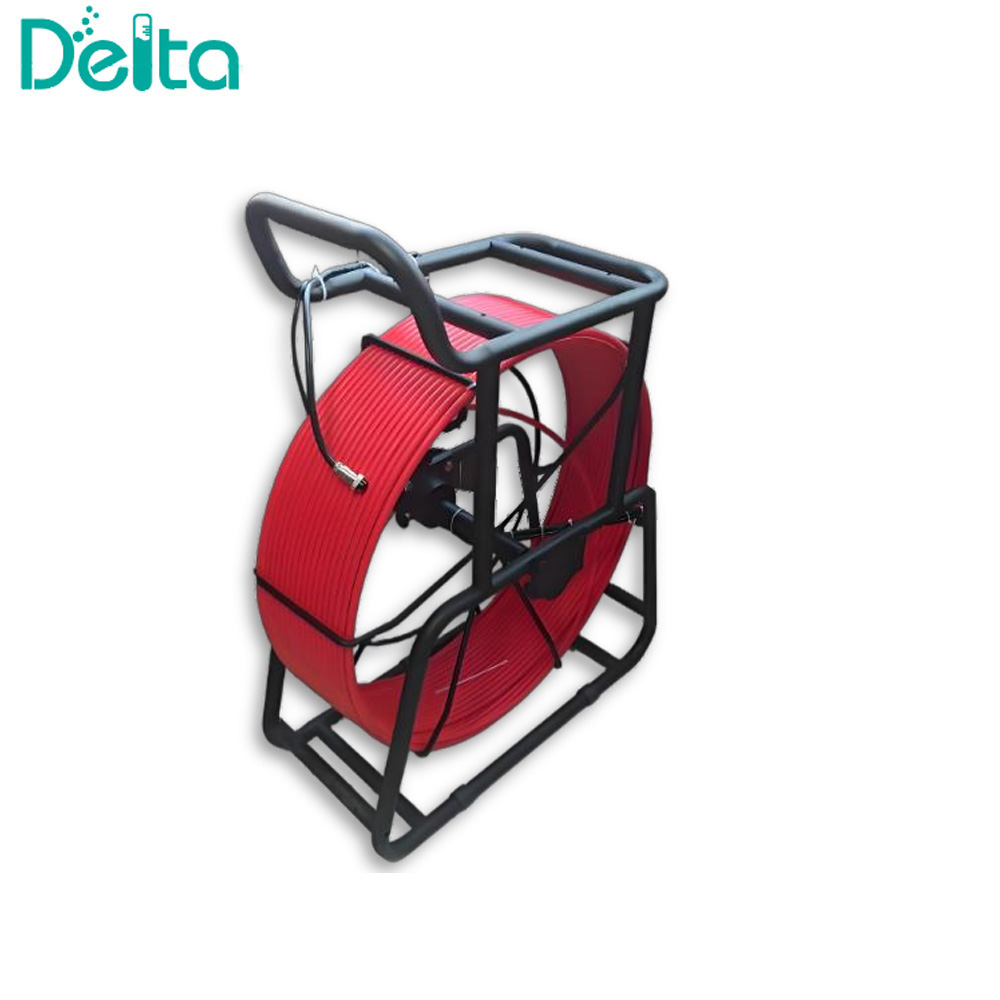

Cable Frame

27Colour

Black

28

Material

Iron Frame
