VFT ISO15025 Flexible Materials Vertical Flame Spread Tester

It is used to determine the limited flame spread properties of protective clothing.

VFT ISO15025 Flexible Materials Vertical Flame Spread Tester

Introduction:

Vertical Flame Tester is suitable for the measurement of limited flame spread properties of protective clothing.
The flame from the burner is applied for 10 s to the surface or the bottom of textile specimens which are vertically oriented.

Features:

The apparatus is designed and manufactured according to ISO 15025 standards.
The apparatus can be updated to meet the requirement of ISO6941, ISO 6940 etc by using different specimen holders.

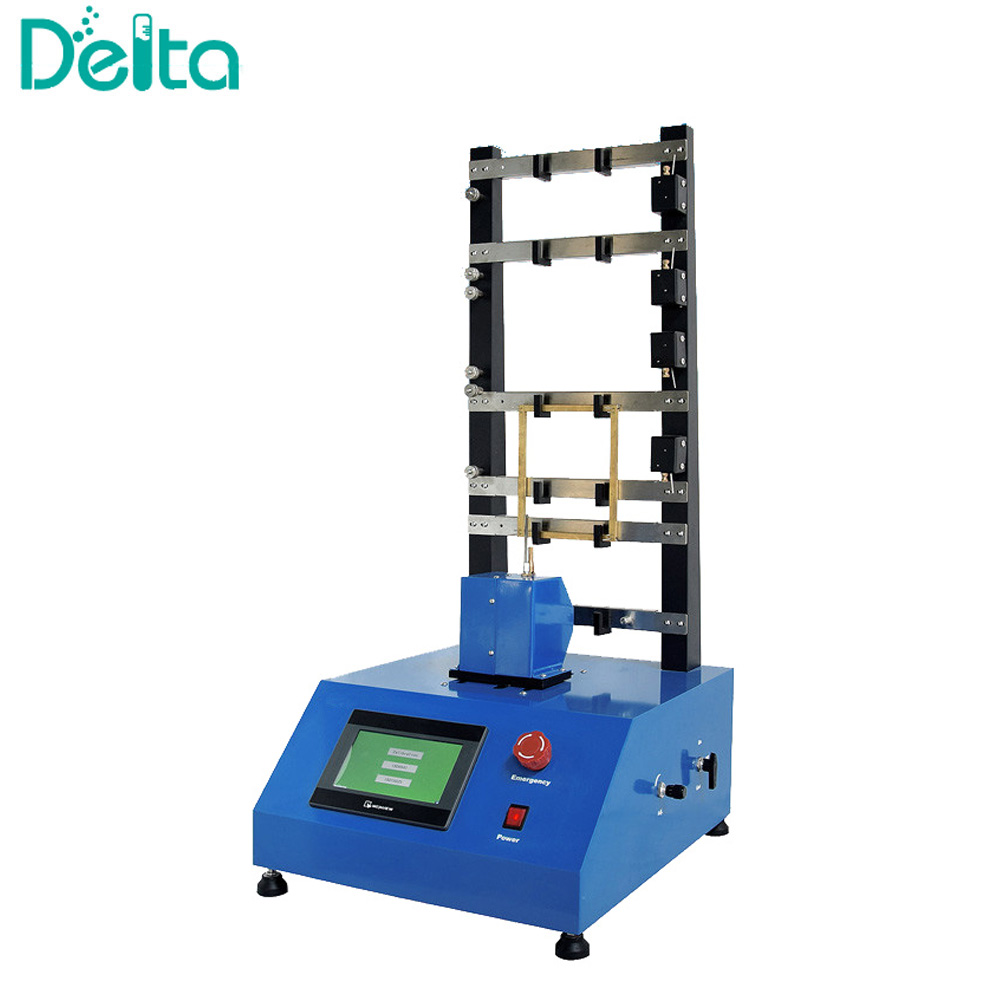

The apparatus consists of mounting frame, gas burner, test specimen holder with supporting pins.
The angle of the burner can be pre-setted and adjusted automatically.
Burning time can be pre-setted and operate automatically.
Burning time and glowing time is recorded and can be read on LCD screen.

Specifications:

No.	Item Name	VFT Textile Fabrics Vertical Flame Tester
1	Application field	Safety protection, Automotive Interior
2	Reference standards	ISO 6941, ISO 15025
2	Dimension	410mm(W) X 900mm(H) X 380mm(D)
3	Weight	36kg
4	Power supply	230 volts Nominal 10 Amps
5	Ambient temperature	Operating 25±5℃
6	Gas supply	Propane and compressed air
