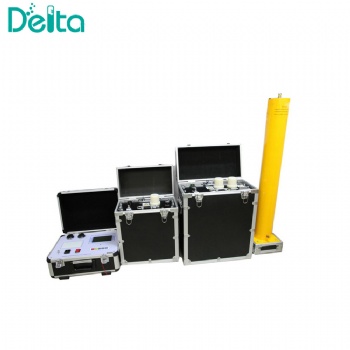

VLF-80 Electric Cable Hipot Testing 30kV to 80kV VLF AC Hipot Test Set

Introduction:

• It is designed and manufactured for electrical equipment very low frequency withstand voltage test.

• It is essentially an alternative of power frequency withstand voltage test.

• It is much smaller, lighter and portable than power frequency withstand voltage tester. It is proved home and abroad that 0.1Hz ultra-low frequency withstand voltage test can replace power frequency withstand voltage test.

Specifications:

Features:

• Data of current, voltage and wave form can be directly sampled at high voltage side, so the data is real and accurate;

• Over-voltage protection: If the output exceeds the set limit of voltage, the instrument will shut-down to protect itself; the actuation time is less than 15ms;

• Over-current protection: it is high-low voltage dual protection in the design, the accurate shut-down protection can be made according to the set value at high voltage side; If the current on low voltage side exceeds the rated current, the instrument will take shut-down protection, the actuation time are both less than 15ms;

• A high voltage output protective resistor is provided in the voltage boost body in the design and this eliminates the need of additional protective resistor connected outside;

• As a result of high and low voltage closed-loop negative feedback control circuit, the output without capacitive rise effect;

• High-voltage control part adopts innovative light control HV switching unit, control is accurate, safe and reliable;

• With color man-machine interface touch control plus controls modular software operating system, precise and intuitive;

• Multi-purpose, can simultaneously measure tested objects capacitance, insulation resistance, leakage current, and AC withstand voltage test;
