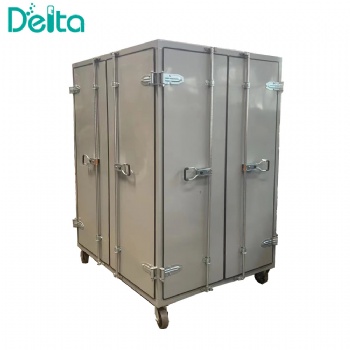

ZJA-1.8KY 1800L/H Small Size Transformer Oil Purifier

Introduction:

Transformer oil is very important to reliability, performance and lifetime of transformer. The oil should be free from moisture, dissolved gases, particles, etc. Even some new oils may require treatment to acceptable level before injecting into the transformer;

Our ZJA Series Oil Purifier is professional for treatment of transformer oil, it can efficiently remove water, gases, acid, particles, etc. from the oil.

It is suitable for the treatment of new oil and used oil, especially for 500KV, 750KV, 1000KV AC power grid, as well as ±660KV, ±800KV, ±1000KV DC power grid UHV large-scale transmission and the national main transformer grid.

It is also used for vacuum oil filling and drying of transformers, which can shorten the oil treatment period of transformer installation and maintenance.

Optional Mode:

●According to the needs of users, PLC intelligent control, touch screen operation, and dynamic display can be selected.

●Optional online moisture detector, online particle detector, optional flowmeter with accumulating function.

●Optional frequency converter, you can choose the flow rate according to your needs.

●The structure of the whole machine: mobile, fixed, trailer (half-axle or double-axle), fully enclosed, canopy type, canvas shed, open type.

Optional Models:

Oil quality after purifying:

Features:

This machine is specially designed for ultra-high transformer oil, and is suitable for the purification of insulating oil in the production, installation and maintenance of ultra-high voltage transformers above 500KV.

It has a two-stage booster vacuum system with high pumping speed and a multi-stage vacuum desorption separation system, which can quickly remove water, gas, polar substances and other degraded substances from the oil.

The unique straight and slow surface vacuum atomization distribution technology, the inner and outer double-film evaporation structure of the inner-filled Raschig ring pull, and the 6-stage inclined hole revolving three-dimensional flash dehydration and degassing technology are adopted, and the oil in the system is maximized. Therefore, the moisture and gas in the oil can obtain sufficient vaporization time to achieve the best dehydration and degassing effect. It can quickly and effectively remove the moisture and gas in the insulating oil, improve the withstand voltage of the insulating oil to more than 80KV, and the moisture content is less than 3PPM.

It adopts composite high-speed degassing spiral escape structure, independent dual-channel technology for oil and gas, and anti-secondary dissolution technology in oil-gas separation, which can quickly remove various organic hydrocarbon gases in oil, ensuring zero acetylene and hydrogen content in oil.

It adopts all-infrared photoelectric scanning foam inspection, maintenance-free mechanical wire mesh acupuncture defoaming and internal differential pressure defoaming and internal flow technology to prevent vacuum "running oil".

It adopts multi-stage high β value and high pollution-holding composite progressive filtration system, line-surface coupled filter element seal, dirty/clean isolation partition, and reasonable fluid pressure relief filtration design (to avoid local high pressure and mass phenomenon), and the use of polar The electrostatic adsorption filter material allows the negative charge carriers that are not easy to be removed to be adsorbed with the positive charge to achieve charge balance, thereby removing impurities, and can effectively filter the fine particles of mechanical impurities in the oil. Filtration accuracy (less than NAS2 grade) particle size ≤500/100ml (particles above 5μm).

It adopts special spiral-increasing lepidopteran-type infrared radiation heating, grouped ultra-low surface load, PID constant temperature control and dual temperature flow protection technology, built-in diameter-increasing oil flow deflecting overflow technology, preventing "dead oil area", over-temperature and Dry burning.

The equipment has a dielectric strength of more than 80KV, moisture less than 3ppm, and zero acetylene (C2H2) and hydrogen (H2). Greatly reduces oil purification time and saves manpower and material costs.

The equipment is provided with an online temperature monitoring instrument, an online pressure detection instrument, an online vacuum detection instrument, and an online liquid level detector. Real-time understanding of the oil filter and the working conditions of the equipment.
