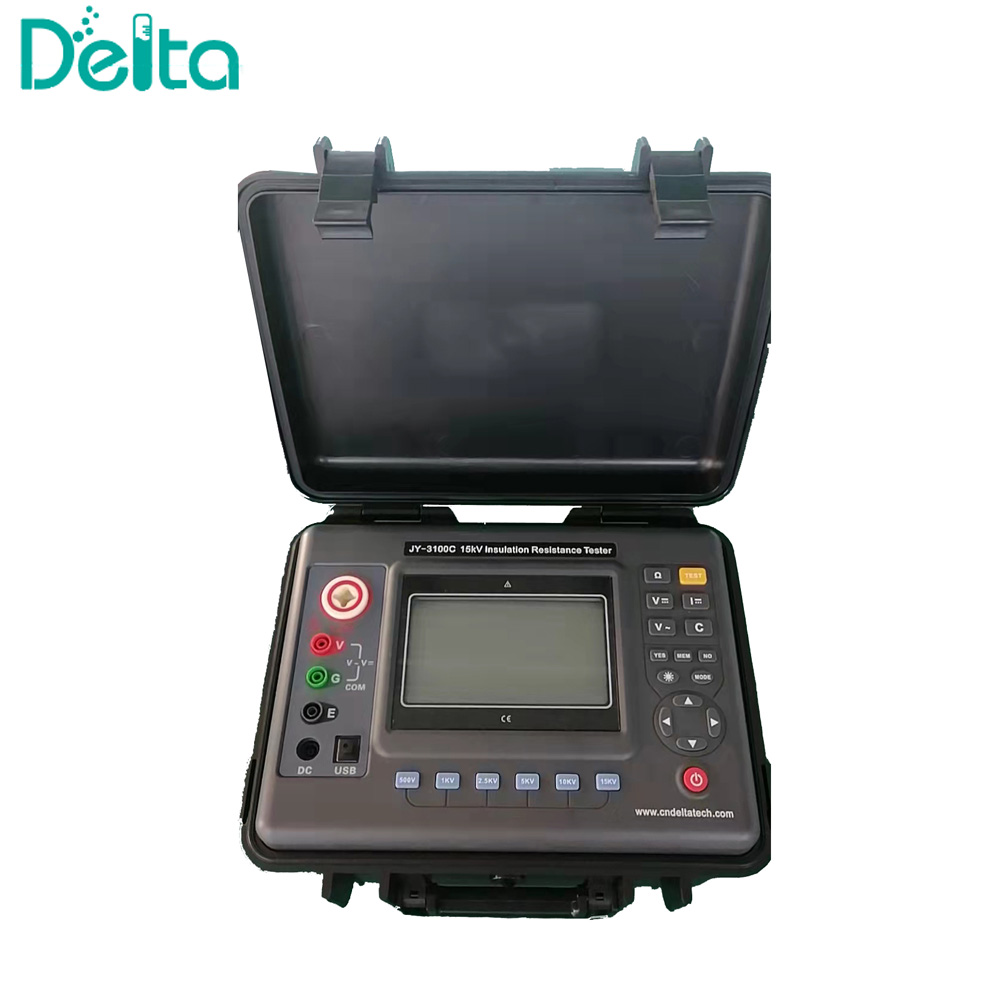

JY-3100C 15kV Insulation Resistance Tester

Introduction:

The insulation resistance tester also named megohmmeter, high-voltage insulation resistance tester, etc.

It is suitable for measuring the resistance value of various insulating materials and the insulation resistance of transformers, motors, cables and electrical equipment. At the same time, it can output a variety of different voltage levels with the step-by-step voltage adjustment function (for example, the 15KV model can generate 12KV level, which is more widely used).

It also has the functions of measuring DC voltage, AC voltage, absorption ratio and polarization index.

It consists of medium and large scale integrated circuits. It has large output power and many output voltage levels (there are 6 voltage levels).

The instrument has a large LCD screen with gray and white backlight display, data storage, data access, alarm, automatic shutdown and other functions.

The whole machine is beautiful, with high resolution, convenient operation, convenient carrying, accurate, reliable, stable performance and strong anti-interference ability. And it has a shock-proof, dust-proof and moisture-proof structure.

It is a common and indispensable instrument for telecommunications, electricity, meteorology, computer rooms, oil fields, electromechanical installation and maintenance, and industrial enterprises that use electricity as industrial power or energy.

Specifications:

Functions		Insulation resistance test, voltage test, DC current test, capacitance test
	Rated voltage	500V, 1000V, 2500V, 5000V, 10KV, 15KV
	Resistance range	0.01MΩ～50TΩ	Resolution: 0.01MΩ
Measurement voltage(V)		Rated voltage *（1±10%）
DC voltage range		0～1000V		Resolution: 0.1V
AC voltage range		0～750V		Resolution: 0.1V
DC Current		0.1nF～6mA		Resolution: 0.1nA
Capacitance		10nF～50uF		Resolution: 10nF
Output short circuit current		≥6mA
Measurement of absorption ratio and polarization index		Yes
Power supply		12V chargable battery
Backlight		Controllable gray and white screen backlight, suitable for use in dark places
Display		4-digit large LCD display, gray and white screen backlight
LCD screen		108mm×65mm
Dimension		240mm(L)188mm(W)85mm(H)
Weight		2750g (with battery)
USB function		With USB interface, software monitoring, storage data can be uploaded to the computer, save and print
Test cable		High voltage rod 3 meters (red), high voltage cable black 1.5 meters, green 1.5 meters.
Data storage		500groups，when flashing "FULL" symbol, it indicates the storage is full
Data review function		“MR” symbol
Over-range display function		“>” symbol
Alarming		It will alarm when the resistance is low and voltage is high. The alarm value needs to be set.
Power consumption		Standby: 30mA Max (backlight off); Turn on the backlight: 42mA Max,m; Measurement: 200mA Max (backlight off).
Automatic turn off		No operation in 15min
Insulation resistance		≥50MΩ (Between measurement line and enclosure)
Withstand voltage		AC3kV/50Hz 1min
Working environment		－10℃～+50℃＜85%RH
Storage environment		－15℃～+55℃＜90%RH
Safety regulations it comply with		IEC61010-1, IEC1010-2-31, IEC61557-1,5, IEC60529(IP54), etc.
