DT-3A Rubber Impact Elasticity Test Machine

The rubber impact elasticity testing machine is suitable for measuring the rebound value of vulcanized rubber with a hardness between 30 and 85 IRHD.

DT-3A Rubber Impact Elasticity Test Machine

Brief Introduction:

The rubber impact elasticity testing machine is suitable for measuring the rebound value of vulcanized rubber with a hardness between 30 and 85 IRHD.

This machine is an energy 0.5J pendulum impact elasticity testing machine.

Main Features:

①. After the test, it displays the angle energy directly, store test data and print test results automatically.

②. With safety protection devices and electric shock button to ensure the test security.

Main Technical Parameters:

Punch Diameter	Φ12mm
Specimen Specification	Φ29×12.5mm
Impact Mass	0.35-0.1kg
Impact Speed	1.4+0.6m/s
Expressed Strain Energy Density	351+112kJ/m3
Indication Error of Springback	±0.5%
Dimensions (L×W×H)	320×200×360mm
Host Weight	20kg

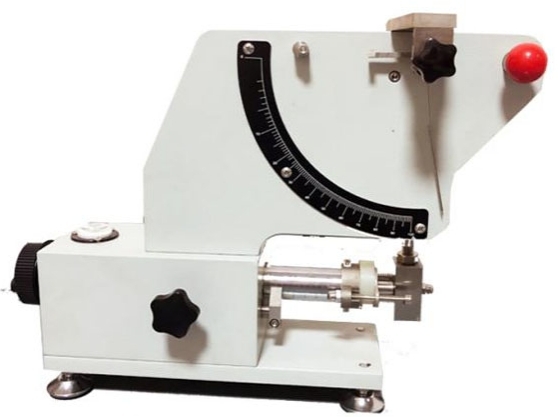

DT-3A Rubber impact elasticity Test Machine.jpg
