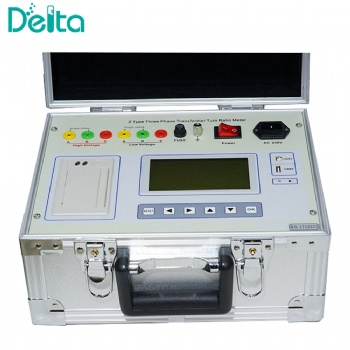

TTR-Z Z Type Transformer Turns Ratio Tester

Introduction:

TTR-Z Transformer Ratio Tester is specially designed for three-phase transformer in power system, especially for transformer of type Z winding and other transformers whose zero-load current is relatively high.

The tester has wide testing range, fast testing speed, favorable repeatability, flexible data processing, convenient connection, complete protection, easy learning and convenient operation.

Features:

• TTR-Z Transformer Turns Ratio Tester can be used to measure transformers which connected in Z type, and also transformer whose zero-load current is relatively high.

• With two output voltages as optional.

• With wide testing range and the highest transformation ratio may reach 10000.

• Automatically calculate tap position.

• Rapid test speed, about only 18 seconds for three-phase.

• Hih repeatability.

• It can save 99 groups of datas.

• Flexible data processing, including retrieval, print, transfer to U-disk, delete and upload to PC computer for testing.

• With transformer short-circuit protection and interturn short-circuit protection functions. In case of short circuit, relevant information will be displayed on the LCD screen in characters.
