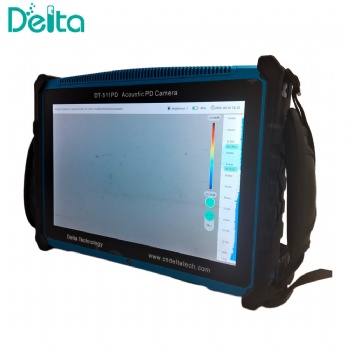

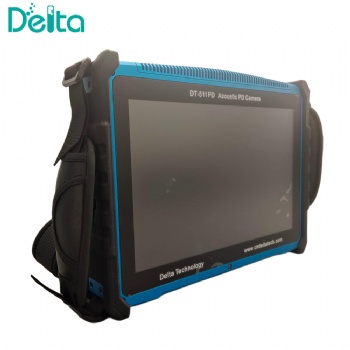

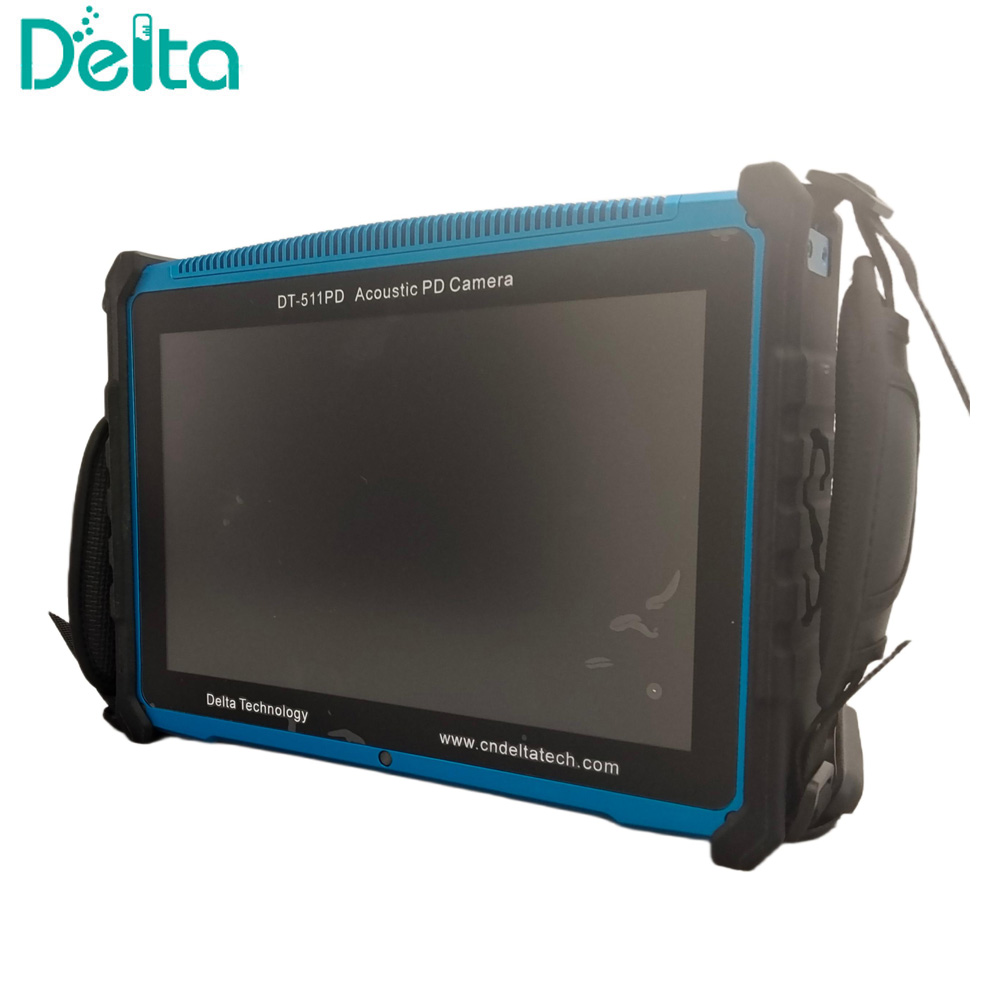

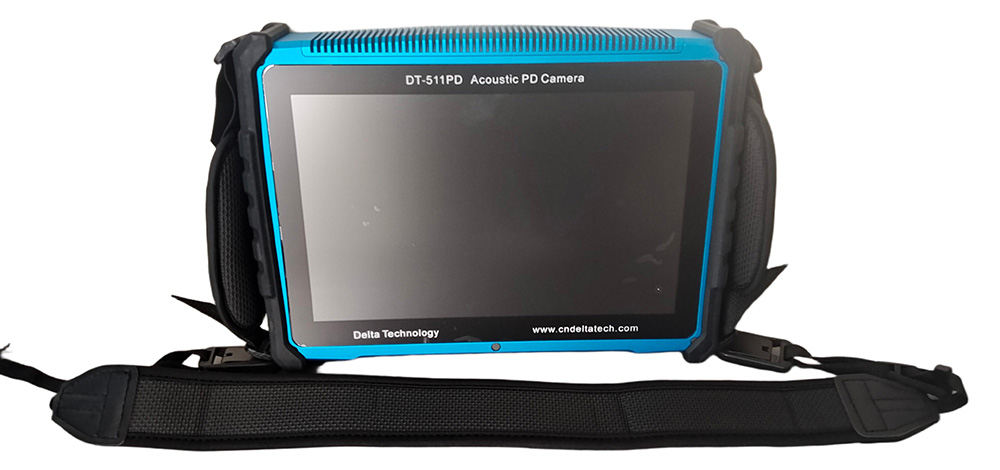

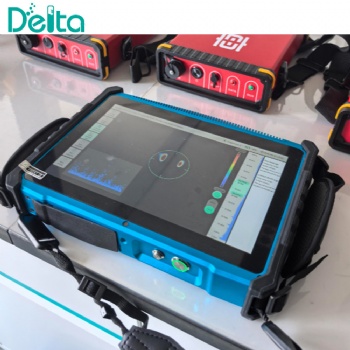

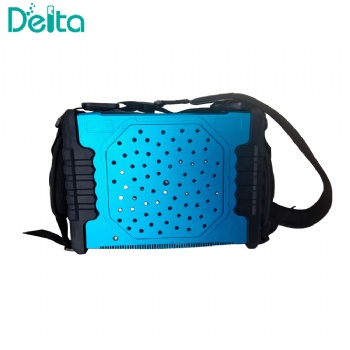

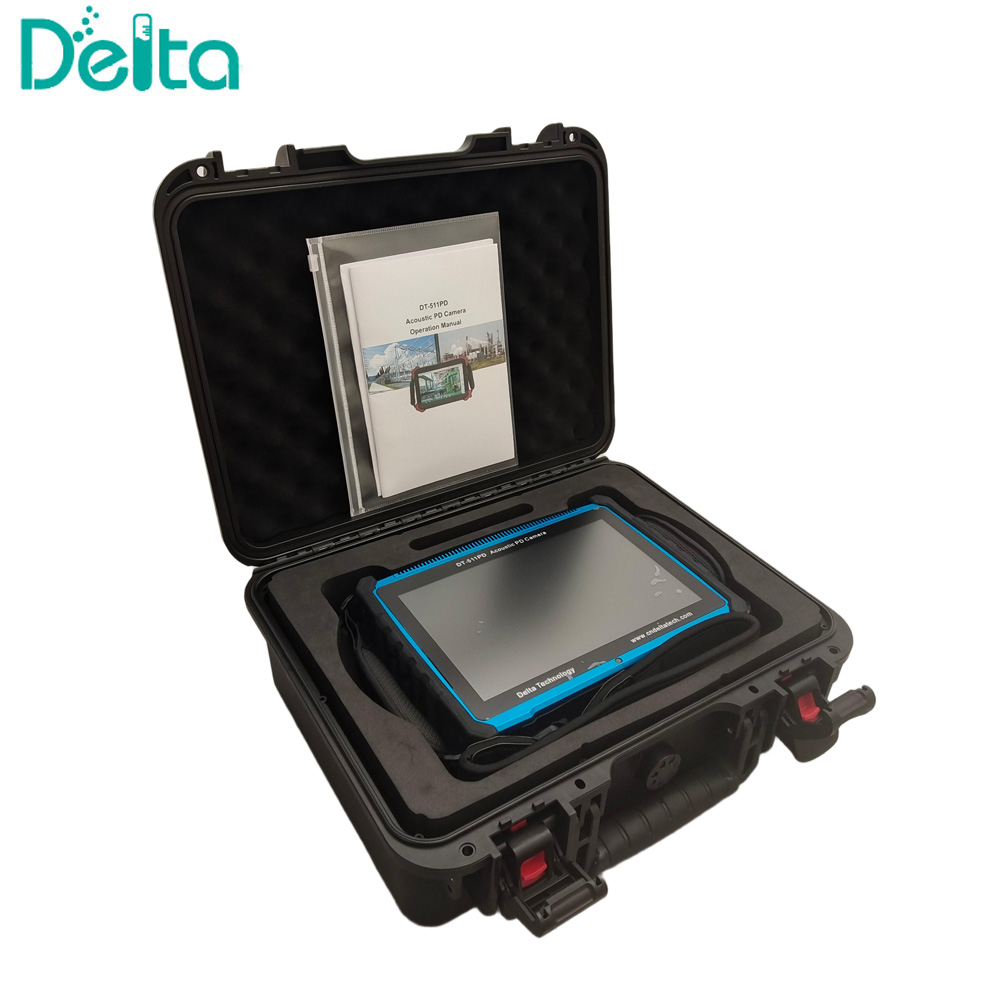

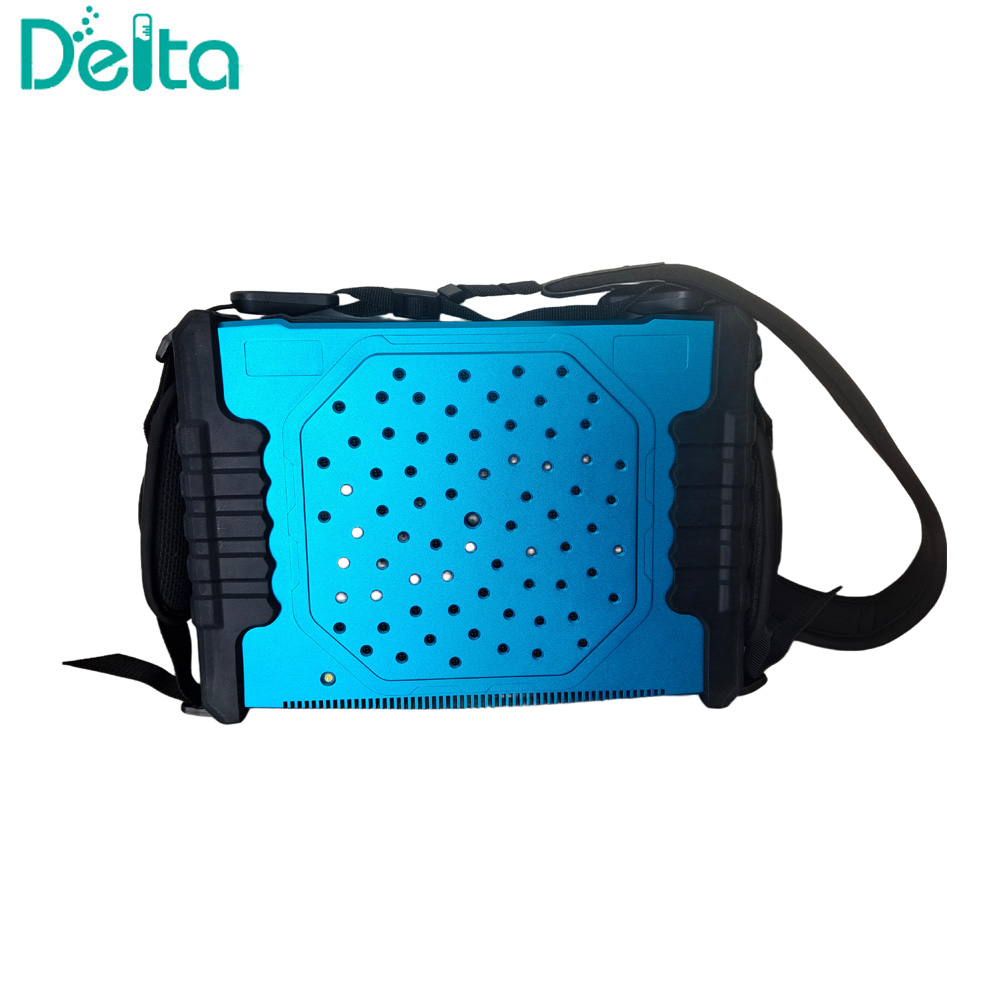

DT-511PD Ultra Sonic Partial Discharge Detector

Introduction:

DT-511PD Ultra Sonic Partial Discharge Detector for Electric Devices is a new type of partial discharge localization detector, it integrated with noise source identification and localization, gas leak localization detection and analysis and diagnosis system.

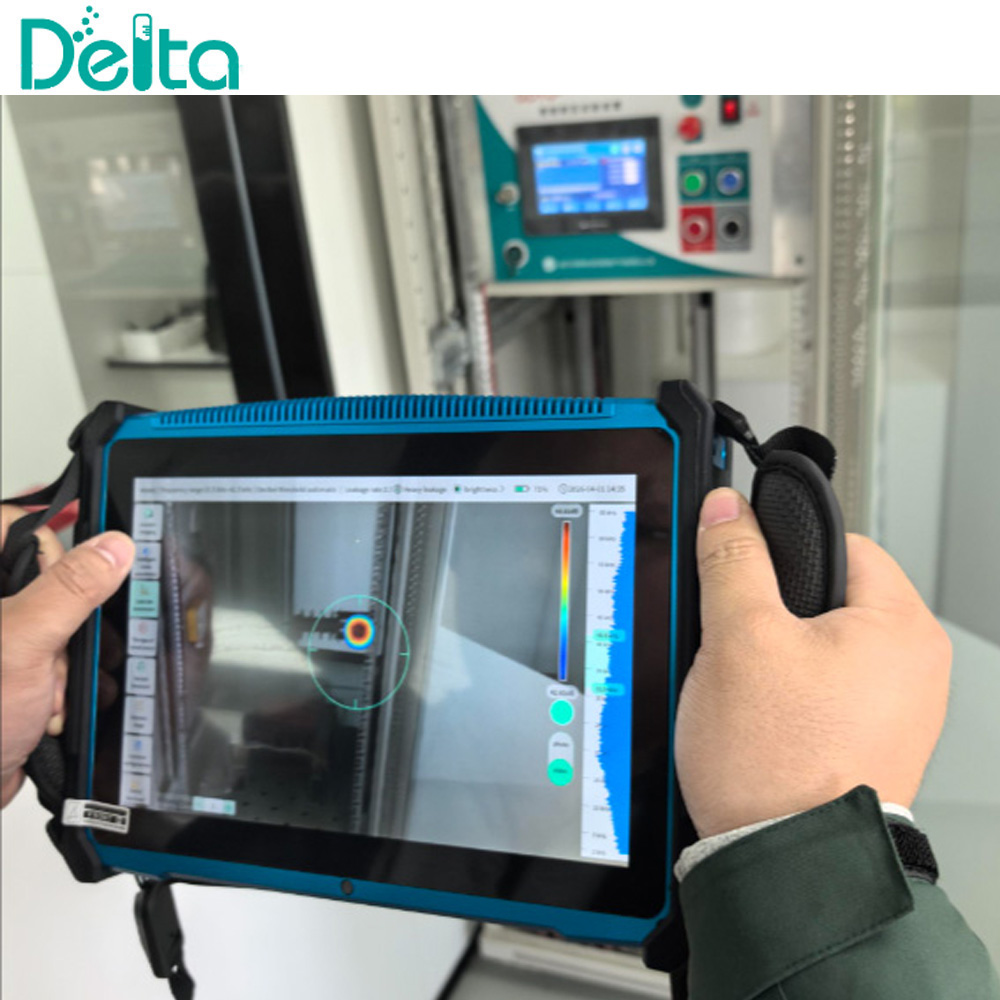

DT-511PD Ultra Sonic Partial Discharge Detector for Electric Devices uses a high-sensitivity digital microphone array, which is mainly used to detect pressurized gas leakage and partial discharge of electrical insulation equipment.

Specifications:

Features:

Ø It uses ESR environmental sound target recognition technology and the sound source

Ø positioning technology based on beam-forming theory to measure the location of the

Ø sound emitted by the equipment and the state of sound radiation.

Ø It covers the entire range from the audible sound band to the ultrasonic band and visualizes the collected sound in the form of a color contour map, effectively measuring the sound field distribution.

Ø The device can not only detect gas leaks and partial discharges, but also expand functional detection, including infrared thermal imaging detection, internal leakage detection or other detection functions.

Ø It is designed with fill light for low-light environment detection and has an external sensor function.

Ø The body is made of aluminum alloy to increase the durability of the device.

Functions:

Thermal imaging function (optional)

Intelligent noise reduction function

Leakage rate assessment function

Frequency adjustment function

Sound source type switching function

Decibel threshold adjustment function

Add common configuration function

Historical record review function

Dynamic range adjustment function

FFT spectrum

Partial discharge spectrum

Photo/video recording
