SLQ Series Primary Current Injection Test Set

SLQ is an essential equipment used for electrical debugging to generate high current, which be widely used in power plants, power distribution stations, electrical plants , scientific research, laboratories and other units.

Description
Inquiry

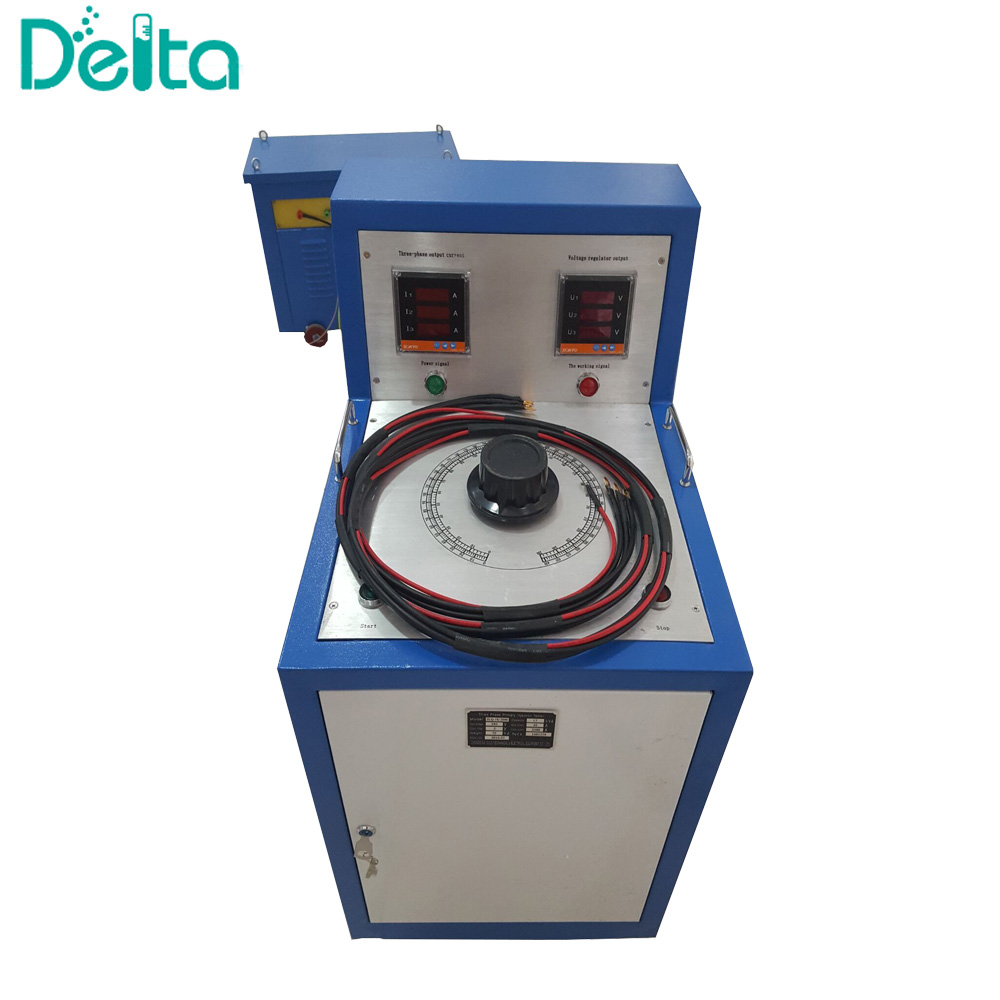

SLQ Series Primary Current Injection Test Set

Introduction:

SLQ is an essential equipment used for electrical debugging to generate high current, which be widely used in power plants, power distribution stations, electrical plants , scientific research, laboratories and other units.
It is a short-term or intermittent work device and characterized by small size, light weight, good performance, easy use and maintenance.

Specifications:

Model	Capacity (KVA)	Junior Range		Secondary Range		Dimensions (mm) LWH	Weight ( kg)	Structure
Model	Capacity (KVA)	V1	A1	V2	A2	Dimensions (mm) LWH	Weight ( kg)	Structure
SLQ-3/500	3	220	15	6	500	430×338×550	45	Integrated
SLQ-6/1000	6	220	27	6	1000	500×380×600	65	Integrated
SLQ-12/2000	12	380	31.6	6	2000	580×400×750	105	Integrated
SLQ-15/2500	15	380	39.5	6	2500	600×430×790	145	Integrated
SLQ-24/4000	24	380	63	6	4000	640×450×820	180	Separated
SLQ-30/5000	30	380	79	6	5000	600×430×900 300×500×500	145 135	Separated
SLQ-36/6000	36	380	95	6	6000	600×430×900 300×500×500	150 140	Separated
SLQ-48/8000	48	380	126	6	8000	600×450×950 350×550×550	180	Separated
SLQ-60/10000	60	380	158	6	10000	800×600×1100 380×550×600	200	Separated
The capacity and maximum current output could be customized according to the requirements of customer if you can not find the one you need in this table.
