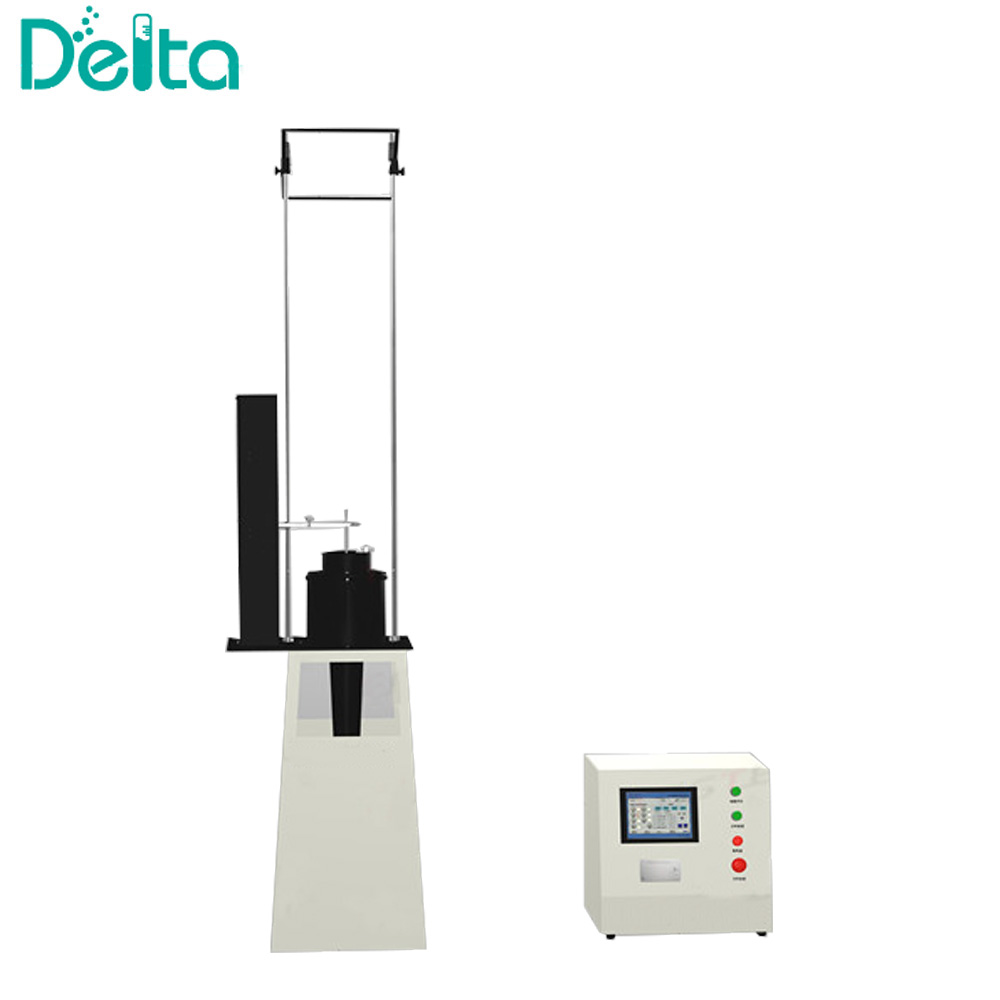

NCF Battery Outer Shell Non-combustibility Tester ISO1182 BS476-4

Introduction:

• NCF ISO1182 BS476-6 Non-combustibility Tester is designed and manufactured in accordance with EN ISO1182 standard , it is mainly for building products testing.

• NCF ISO1182 BS476-6 Non-combustibility Tester is mainly used in the non-combustibility test for building materials, and is suitable for classification of combustion performance of Class A fireproof materials.

• NCF ISO1182 BS476-6 Non-combustibility Tester is suitable for both composite products and materials of the components testing.

• NCF ISO1182 BS476-6 Non-combustibility Tester is also comply to BS 476-4 & 11 and IMO FTP Part 1 standards. So it can also test UK building materials, railway materials and non-metallic products of vessel.

Standards:

• BS: BS 476-4

• ISO: ISO 1182

• EN: EN 13501

• IMO: FTPC Part 1

Application Field:

• Building Materials;

• Rail;

• IMO;

Features:

• Non-Combustibility Furnace measures in-combustibility and combustibility of uniform building material and non-uniform building material of actual element.

• The evaluations (results) are rising temperature in the furnace, basic mass loss and ignition of specimen.

• Single Zone Furnace operable at up to 900 oC with the Kanthal Ribbon Heater.

• 750±5oC temperature automatically control by PID and Power controller.

• Provided with stabilized voltage supply for more quick temperature stabilization.

• Equipped with 3 thermocouples, for temperature in furnace, specimen center, and specimen surface respectively.

• 360 degree rotatable and height adjustable thermocouple scanning device.

• Inner furnace thermocouple device to calibrate the temperature of furnace.

Testing results include:

• Mass Loss(g) and Rate(%)

• Ignition Time(s) and Sustained Flaming(s)

• Initial & Maximum Furnace Temperature(oC)

• Final Furnace Temperature(oC)

• Maximum Specimen Center Temperature(oC)

• Final Specimen Center Temperature(oC)

• Furnace Temperature Rise(oC)

• Specimen Center & Surface Temperature Rise(oC).

Parameters:
