NF P92-504 Building Materials Fire Safety Testing Device

The Speed of Spread of Flame Test Device, in accordance with NF P 92-504, is used to determine the reaction to fire behavior and speed of spread of flame for flexible and rigid building materials when exposed to a defined flame.

Description
Inquiry

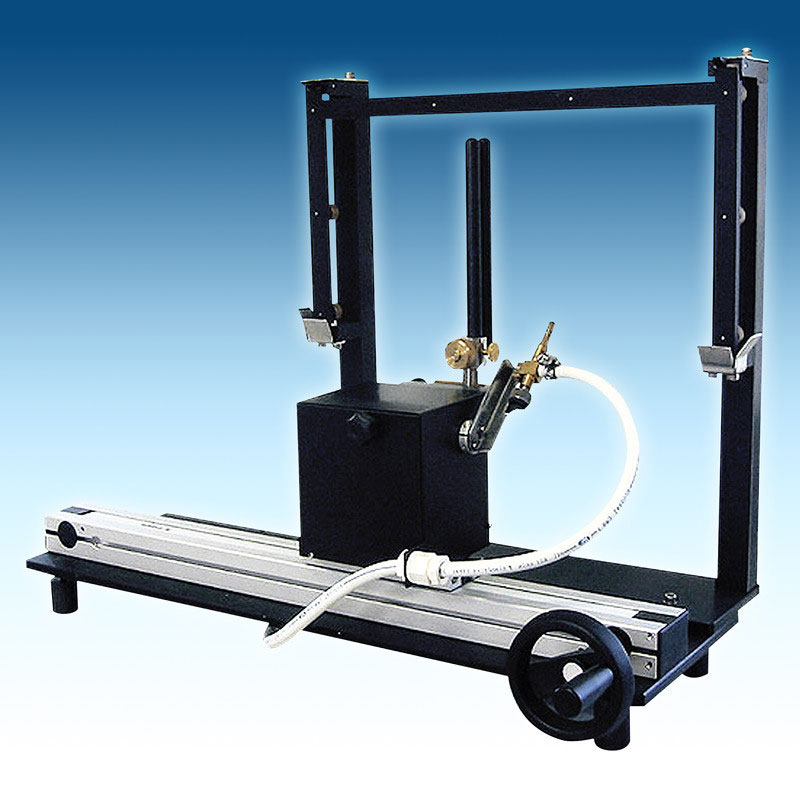

NF P92-504 Building Materials Fire Safety Testing Device

Introduction:

The NF P92-504 Building Materials Fire Safety Testing Device, in accordance with NF P 92-504, is used to determine the reaction to fire behavior and speed of spread of flame for flexible and rigid building materials when exposed to a defined flame.

The NF P 92-504 test is applied to classify the material from M0 to M4 of the French building materials.

Application Field:

Building Materials;
Rail;
Automotive interior;

Features:

Compactly designed, all elements are installed on the black painted base.
U-shape specimen holder, stainless steel made.
Standard burner, provides a 20mm height flame.
The burner can be turned to 45 degrees.
A needle valve controls the propane flow.
A motor controls the horizontal movement.
Provides flame gauge and sample template.

Parameters:

No.	Item Name	NF P92-504 Building Materials Fire Safety Testing Device
1	Dimension	470mm（W）X 470mm（H）X 330mm（D）
2	Weight	18kg
3	Power supply	220V, 50HZ,10A
4	Ambient temperature	Operating 10°C to 35°C
