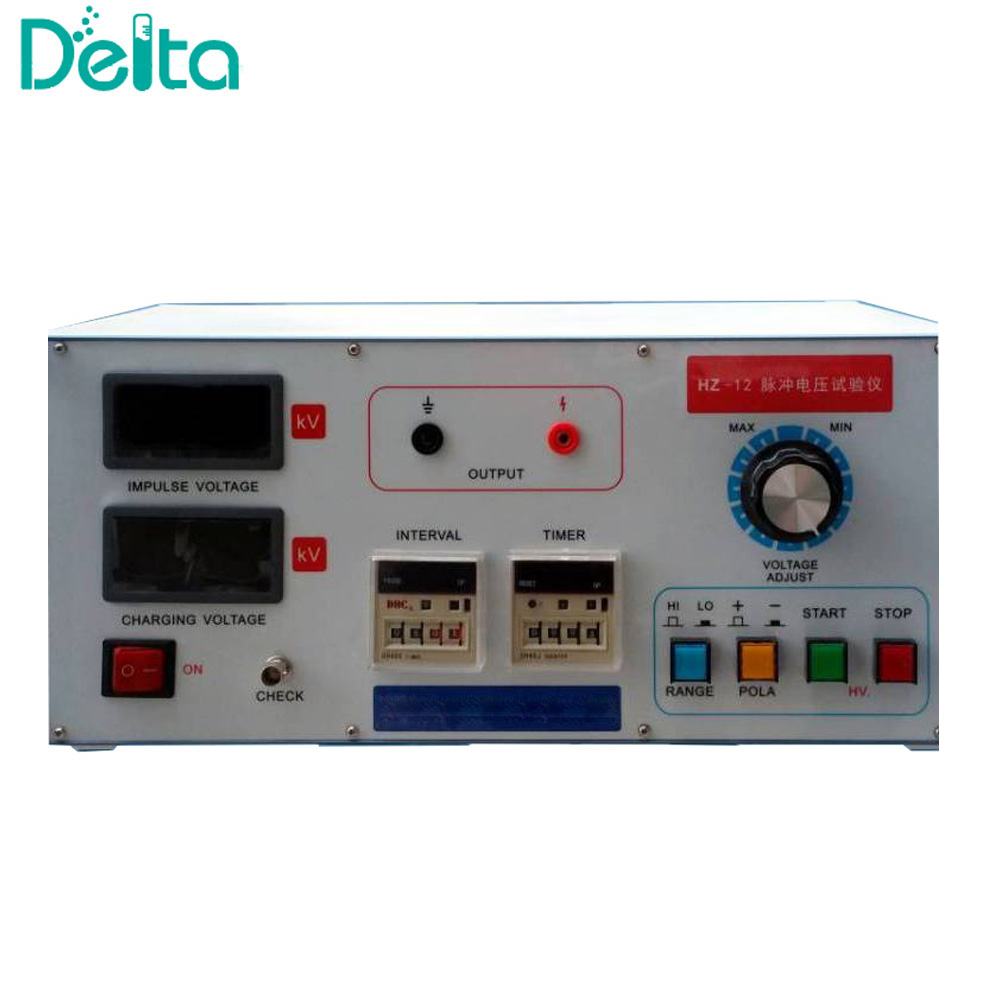

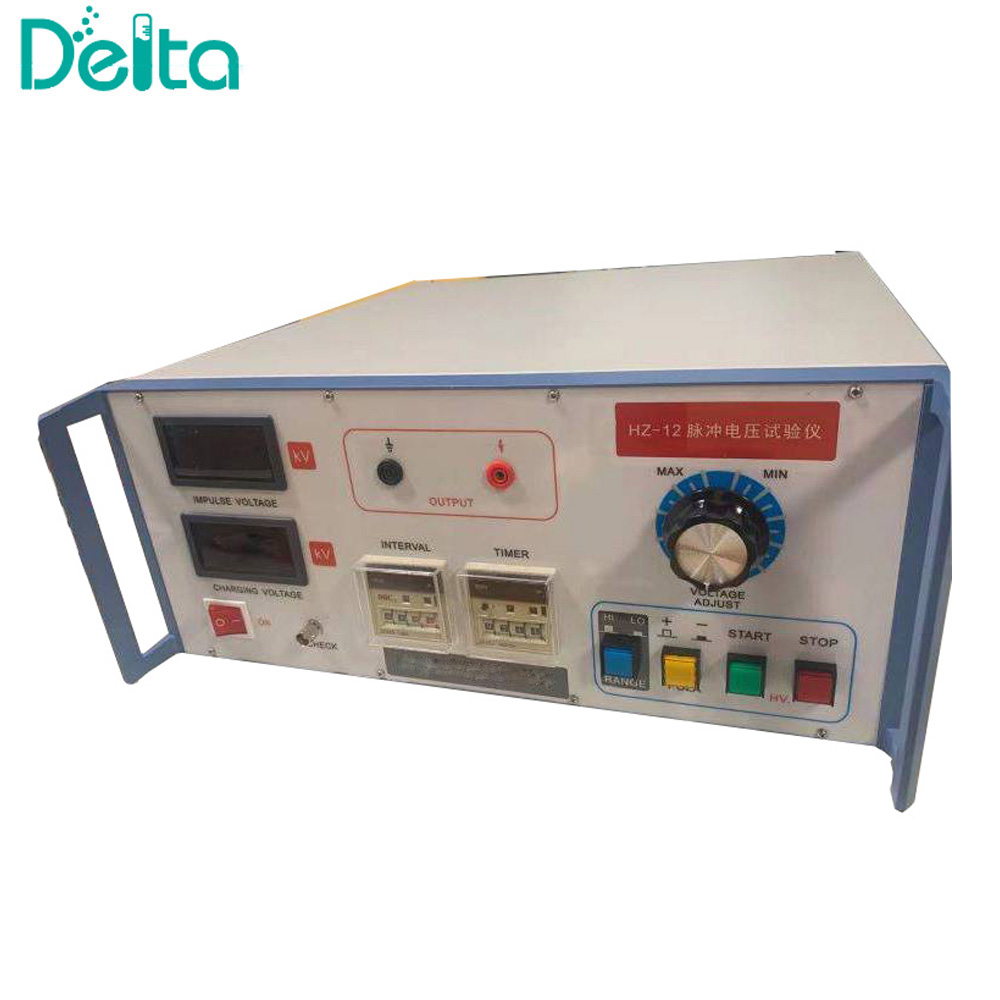

HZ-12 Anti-Shock Experiment Test IEC60335 Device

Introduction:

HZ-12 Anti-Shock Experiment Test IEC60335 Device is a 1.2/50μs transient over-voltages tester. The shortest polarity interval time can be 5s.

The standard voltage waveform complies with the IEC 60335.

It is used for safety testing to determine if the clearance is fulfilled the safety requirement while the transient voltage in the circuit.

Specification:

• Time of surge wave front: 1.2µs ± 30%

• Time of half value of wave tail: 50µs ± 20%

• Surge voltage: 1 ~ 12kV, ±3%

• Instrument internal resistance: 12Ω±10%

• Polarity interval (Adjustable): 5 ~ 99s

• Surge times (Adjustable): 1 ~ 9999 times

• Polarity: positive and negative

•Others: Equipped with a waveform detection port, it can be connected to an external digital storage oscilloscope to detect waveforms.

Features:

HZ-12 Anti-Shock Experiment Test IEC60335 Device is easy to use, simple to operate, it has good repeatability, and does not require adjusting the ball distance.

The service life of the main component discharge switch is over 300000 times.

Equipped with a digital pulse peak meter, it has high accuracy and can distinguish test results through the digital meter.

The voltage can be adjusted freely within the range.
