5kV 30mA AC Withstand Voltage Tester Insulation Tester Portable Hipot Tester

Brief Introduction:

This series of withstand voltage testers is a high-performance safety tester designed with high-speed MCU and large-scale digital circuits.

The output voltage can increase and decrease.

The safety of the output voltage frequency is controlled by a microcontroller, which can display breakdown current and voltage in real time and has software calibration capabilities.

Equipped with PLC interface, RS232C, RS485, USB device, and USB host interfaces, it can be easily integrated with computers or PLCs to form a comprehensive testing system.

It can quickly and accurately perform comprehensive safety measurements on household appliances, instruments, lighting equipment, electric heating appliances, computers, and information machines.

Specifications:

Parameter	Model	RK9310	RK9320	RK9330
AC Withstand Voltage Test	Voltage Range	0.050kV~5.000kV
	Voltage Accuracy	±(2%+5V)
	Resolution	1V
	Max. Output Power	50VA (5.000kV/10mA)	100VA (5.000kV/20mA)	150VA (5.000kV/30mA)
	Max. Rated Current	0~10mA	0~20mA	0~30mA
	Lower Limit Current Range	0~10mA, 0=Lower Limit Judgment Disabled	0~20mA, OFF=Lower Limit Judgment Disabled	0~30mA, OFF=Lower Limit Judgment Disabled
	Output Waveform	Sine Wave
	Output Waveform Distortion	≤5% (no load or pure resistive load)
	Output Signal Type	DDS Linear Amplifier
	Voltage Rise Time	0.1s～999.9s, OFF=Rise Time Disabled
	Test Time	0.1s～999.9s, OFF=Continuous Test
	Voltage Fall Time	0.1s～999.9s, OFF=Fall Time Disabled
DC Withstand Voltage Test	Voltage Range	0.050kV~6.000kV
	Voltage Accuracy	±(2%+5V)
	Resolution	1V
	Max. Output Power	30W (6.000kV/5mA)	60W (6.000kV/10mA)	90W (6.000kV/15mA)
	Max. Rated Current	0~5mA	0~10mA	0~15mA
	Lower Limit Current Range	0~5mA	0~10mA	0~15mA
	Ripple Coefficient	≤5% (6kV/5mA)	≤5% (6kV/10mA)	≤5% (6kV/15mA)
	Discharge Time	≤200ms
	Voltage Rise Time	0.1s~999.9s, OFF=Rise Time Disabled
	Test Time	0.3s～999.9s, OFF=Continuous Test
	Voltage Fall Time	0.1s~999.9s, OFF=Fall Time Disabled
Insulation Test	Output Voltage Setting	0.050kV~5.000kV Resolution: 1V/Step
	Upper Limit Resistance Setting	Range: (0.2M~100)GΩ
	Lower Limit Resistance Setting	Range: (0.1M~100)GΩ
	Voltage Rise Time	0.1s~999.9s, OFF=Rise Time Disabled
	Test Time	0.3s～999.9s, OFF=Continuous Test
	Voltage Fall Time	0.1s~999.9s, OFF=Fall Time Disabled
	Resistance Meter	≥500V: 0.10MΩ-1.0GΩ ±5%; 1.0G-50.0GΩ ±10%; 50.0GΩ-100.0GΩ ±15% <500V: 0.20MΩ-1.0GΩ ±10%; 1.0GΩ-10.0GΩ
Ammeter	Measuring Range	AC 0～10mA; DC 0～5mA	AC 0～20mA; DC 0～10mA	AC 0～30mA; DC 0～15mA
Ammeter	Measuring Accuracy	±(2%+5 digits)
Model Type		Benchtop (Horizontal)
Arc Detection		1mA-10mA	1mA-20mA	1mA-20mA
Input Power		100V~240V 50Hz/60Hz
Test Alarm		Buzzer, LCD Display, FAIL Indicator
Screen Size		3.5-inch TFT LCD Display

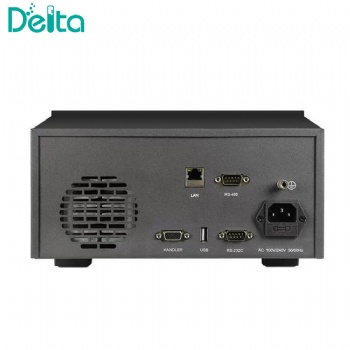

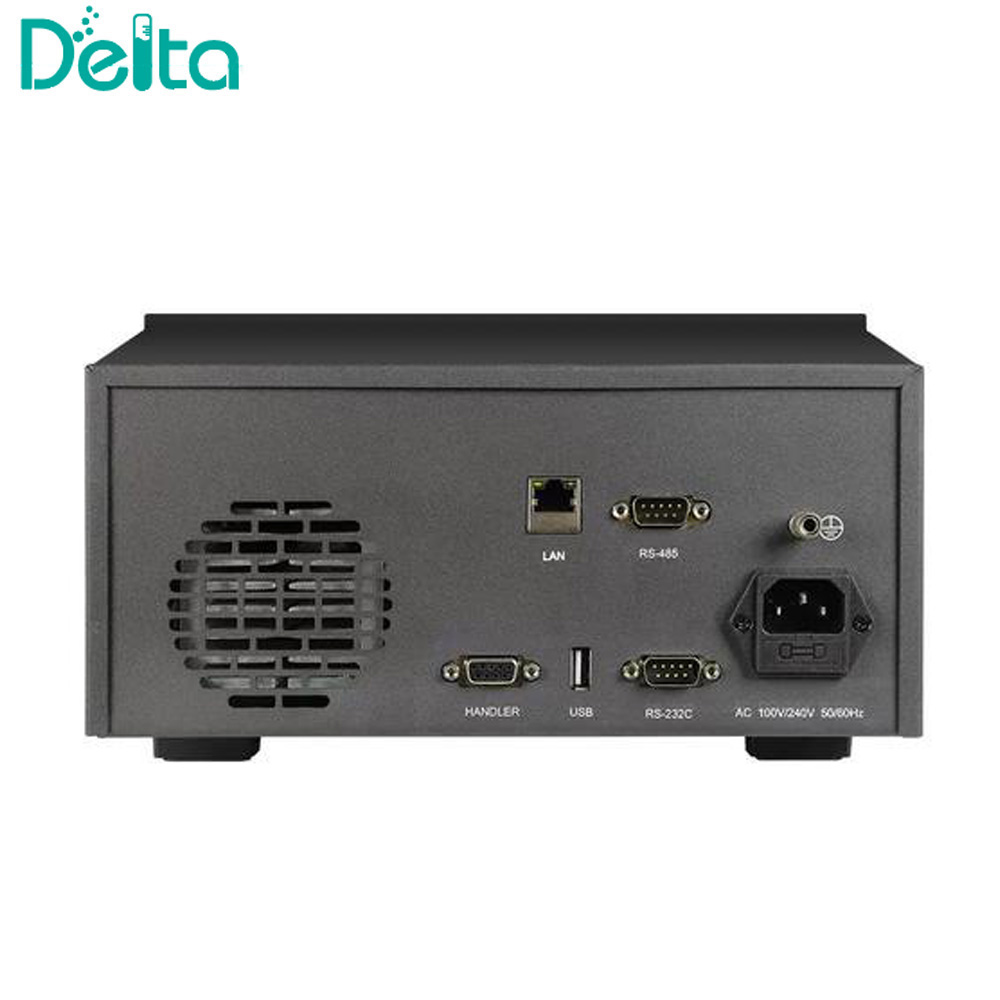

Interface		HANDLER, RS232, USB, LAN
Memory		8M Flash; Each file can store 20 test steps
Dimensions (W×D×H)		400×260×100mm	400×260×100mm	440×260×130mm
Weight (KG)		7KG	7KG	9.25KG

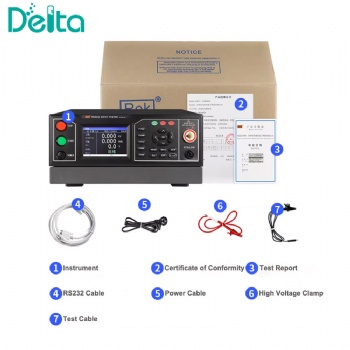

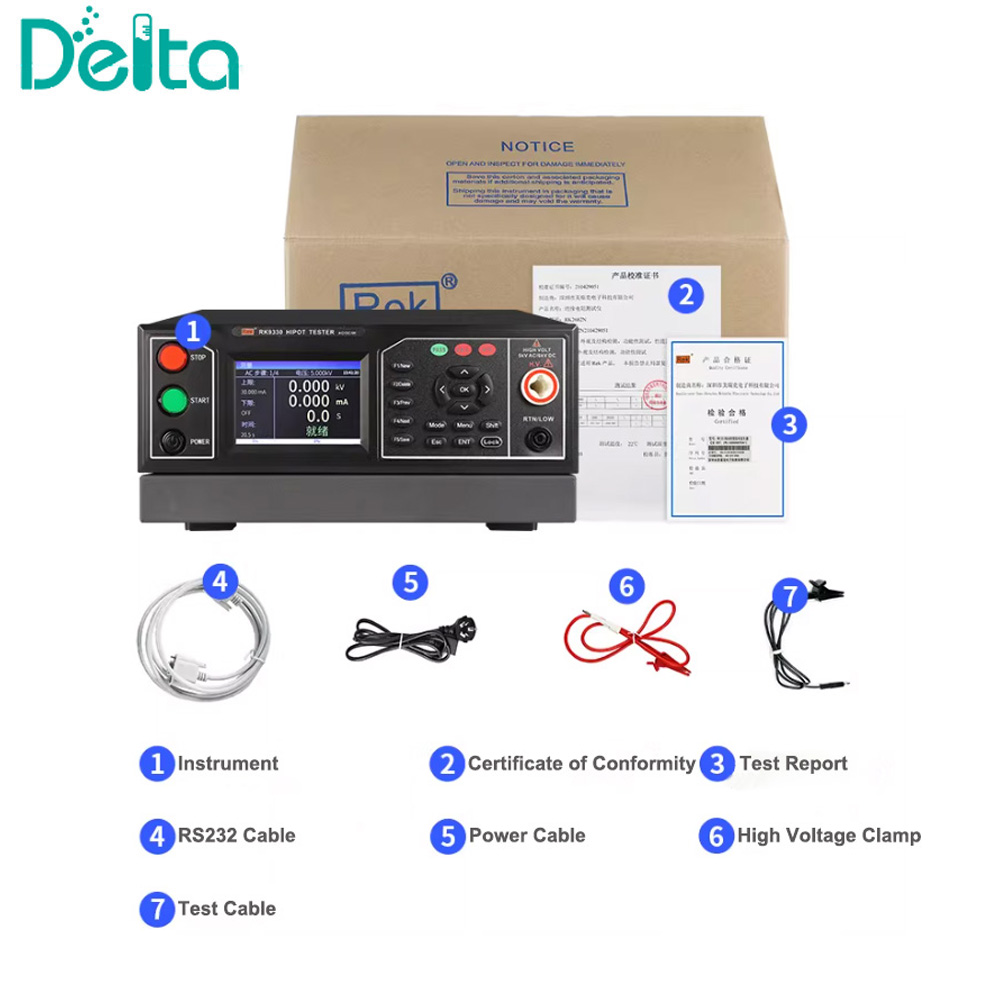

Standard Accessories		Power Cord RK00001, RS232 Communication Cable RK00002, Manual (Electronic Version), Test Cable RK00048, Test Cable RK26003A, MODBUS Test PC Software (Download from official website)
Optional Accessories		RK00031 USB to RS485 Industrial Serial Cable, RS232 to USB Cable RK00003, High Voltage Probe RK8N+, Foot Switch RK00124
Contact Check		Optional: ON/FF

Main Features:

1. AC/DC withstand voltage function uses DDS digital signal synthesis technology to generate accurate, stable, pure, and low-distortion waveforms.

2. Adjustable high-voltage rise and fall times to meet the requirements of different test objects, with arc detection function, and test results can be saved simultaneously.

3. Dual-frequency comprehensive testing, frequency range 50Hz and 60Hz, user-friendly interface supporting digital key input and dial input, making operation simpler.

4. Complete operational help prompts effectively improve user efficiency, supporting character file name input with a maximum length of 12 characters.

5. Test steps and system status information are displayed synchronously, making it easy to understand test step details and system status during the test process.

6. Bilingual Chinese and English interface to meet different user needs, supporting large-capacity storage, and suitable for various testing application requirements.
