3MC 27 Cubic Meter IEC60134-1,2 Cable Smoke Density Tester

Introduction:

• The 3MC Smoke Density Tester is used for measuring the emission when the cable or optical cable is placed horizontally under the definite fire condition.

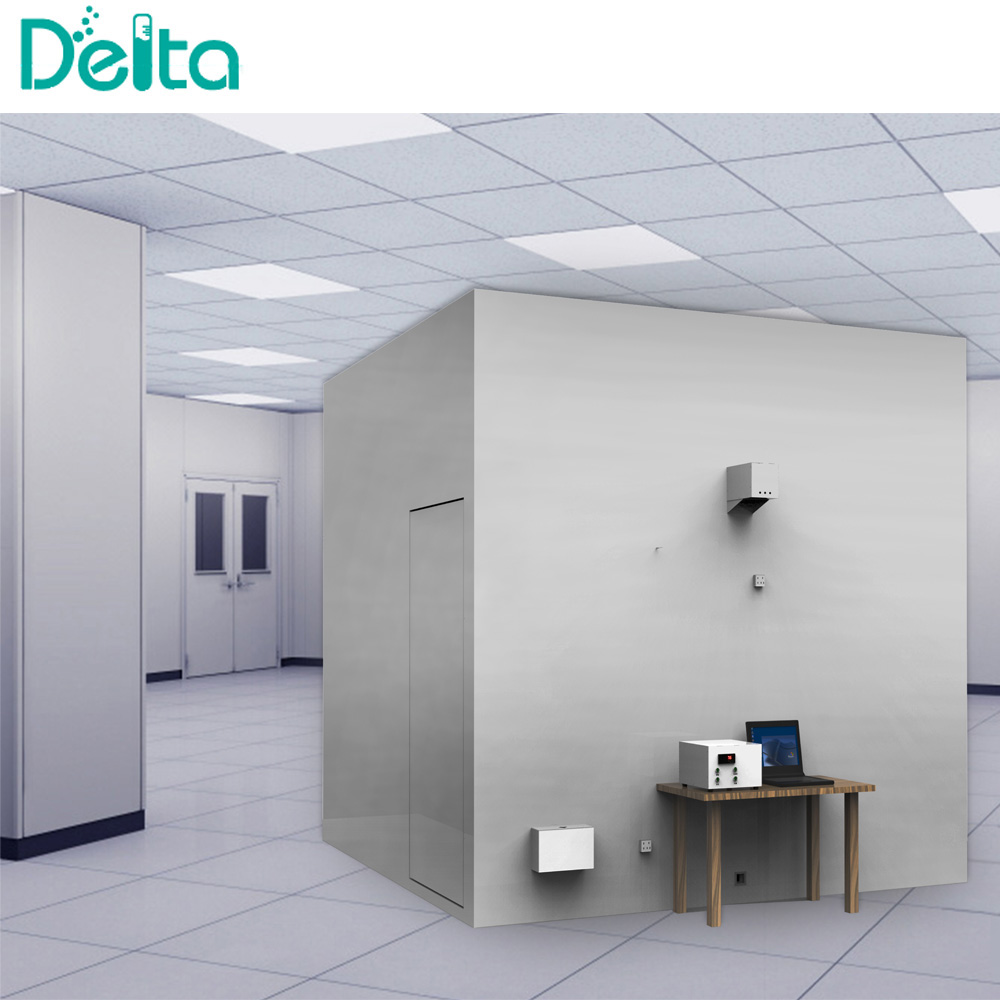

• The equipment comprises a cubic enclosure and a photo-metric system(the outer test chamber is not supplied by us, customers should build the room by themselves.)

• The specified standard fire source (ethanol 90±1%, methanol 4±1% and distilled water 6±1%) 1L±0.01L is burned.

Standards:

1. IEC61034-1&2: Measurement of Smoke density of cables burning under defined condition;

2. BS6853 Code of practice for fire precautions in design and construction of passenger carrying trains;

Application Field:

1. Rail;

2. Wire & Cable;

Features:

• Chamber internal size is 3,000mm(W) × 3,000mm(D) × 3,000mm(H).

• It configured with a door with test glass windows and in both faces of the opposite side there is a sealed transparent window (minimum 100mmX100mm).

• Support system to allow separate fitting of Light Source and Photocell in the outer wall.

• The light source is Dedo light Classic Series Tungsten with 100W.

• The Dedolight Tungsten power supply is 12V DC.

• Velocity of light : 2000 lm~3000 lm, and color temperature : 2800K~3200K.

• The Receptor Photocell is silicone type and has a spectrum reaction conform to Photopic Observer (similar to a human eye) of the International Commission on Illumination (CIE).

• Supplied with customized extraction facilities and all instrumentation, fans, stands and sample mounting frames.

• Software shows testing results including the inner chamber temperature, light transmission etc.
