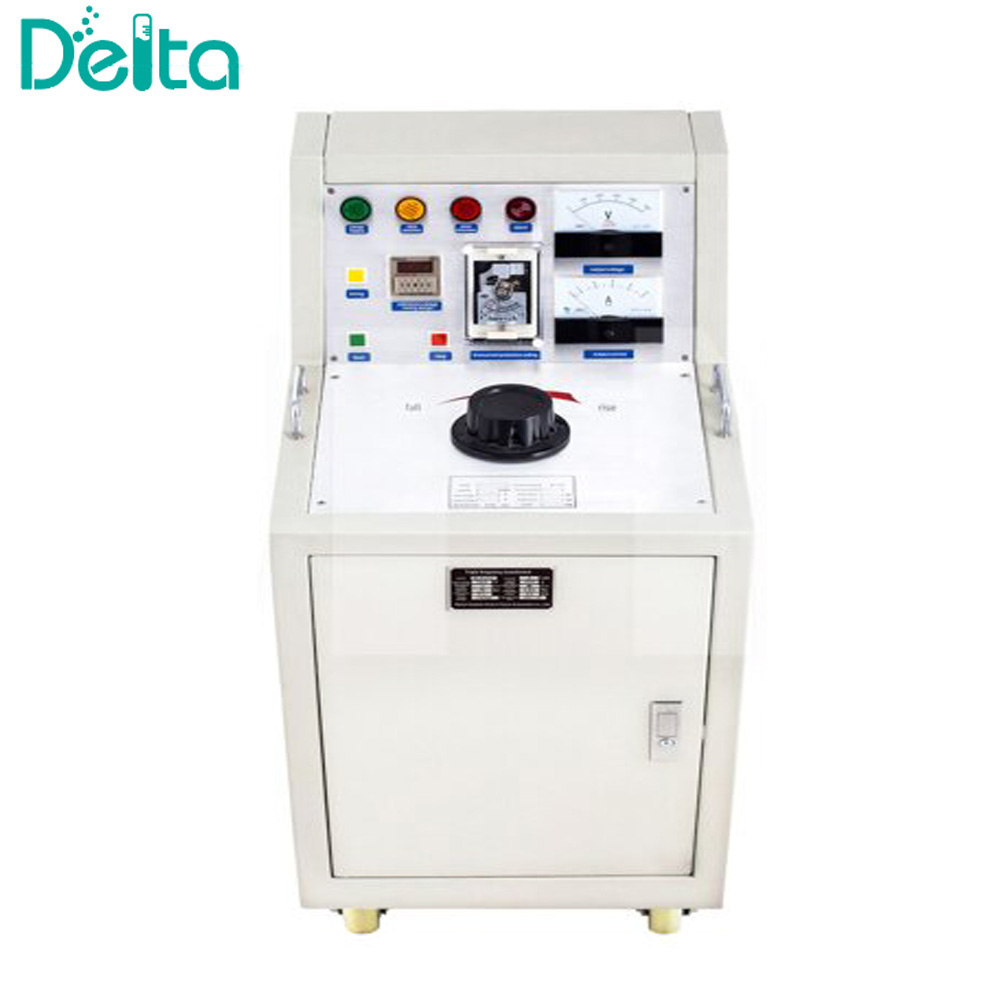

SBF 150Hz Triple Frequency Induction Withstand Voltage Generator

SBF Triple Frequency Induced Withstand Voltage Test Set adopts three-core five-column structure Simple operation and reliable performance Stable and effective

Description
Inquiry

SBF 150Hz Triple Frequency Induction Withstand Voltage Generator

Introduction:

lThe Triple frequency transformer is used to check the main and secondary insulation strength of transformer, and also to conduct induction test on the winding of the motor and small transformer.

lIt can also be used as a 150Hz power supply for short-time operation.

lThe three-core five-column structure is adopted, and the working magnetic flux density of the iron core is selected above the saturation magnetic density,

so that the vector sum of the fundamental electric potential in the secondary winding with the operation connected into a triangle is 0.

Main Parameters:

Input voltage	Three-phase 380V 50Hz sine wave
Input current	7.6A
Output voltage	Single phase 0~500V/0~1000V(continuously adjustable) Frequency:150Hz
Output current	5A
Output capacity	5kVA
No-load running time	≤5 minutes
Load running time	40 seconds
