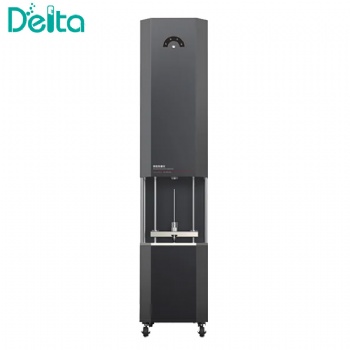

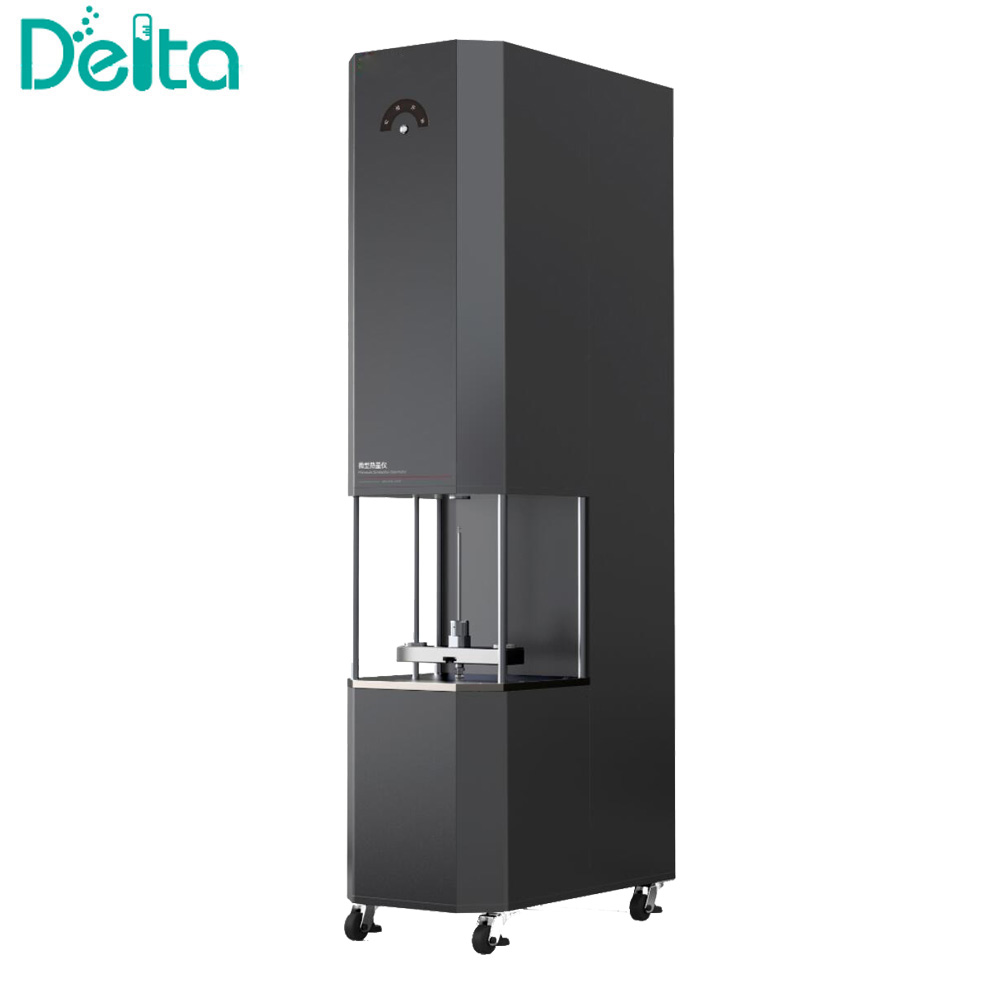

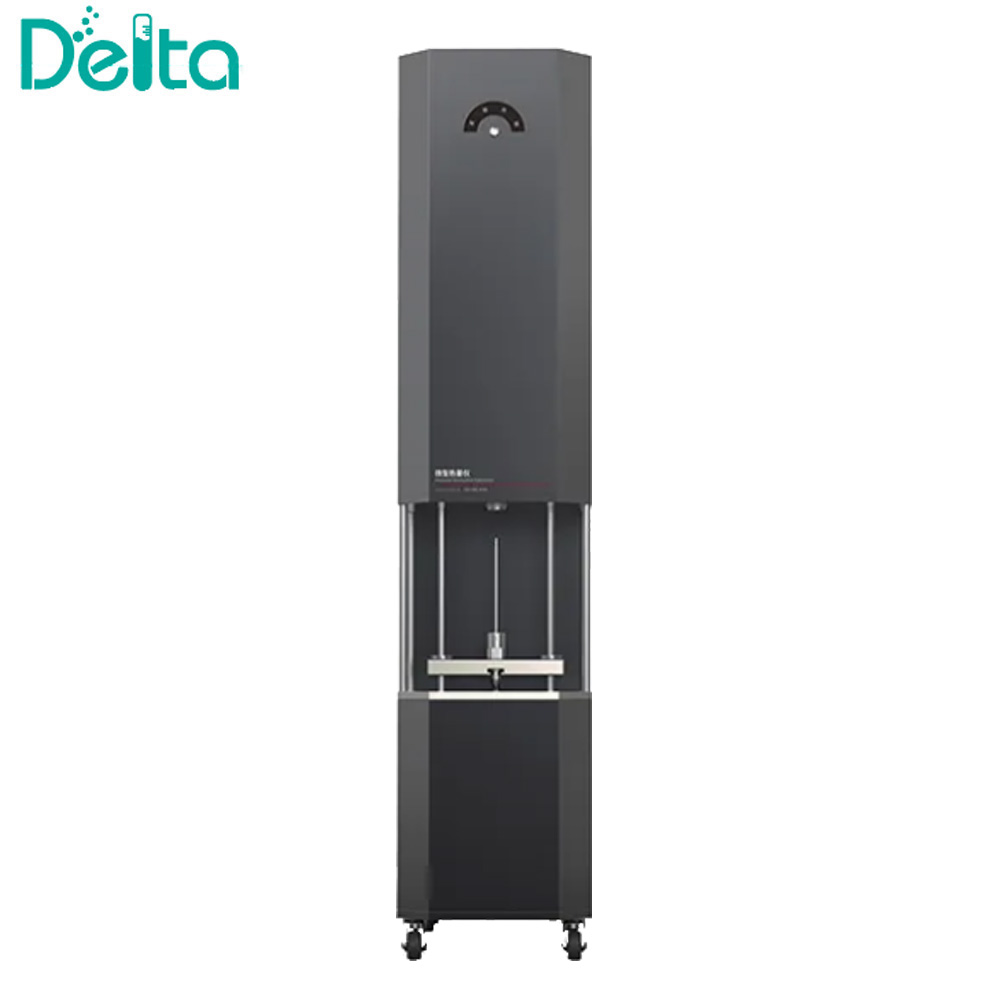

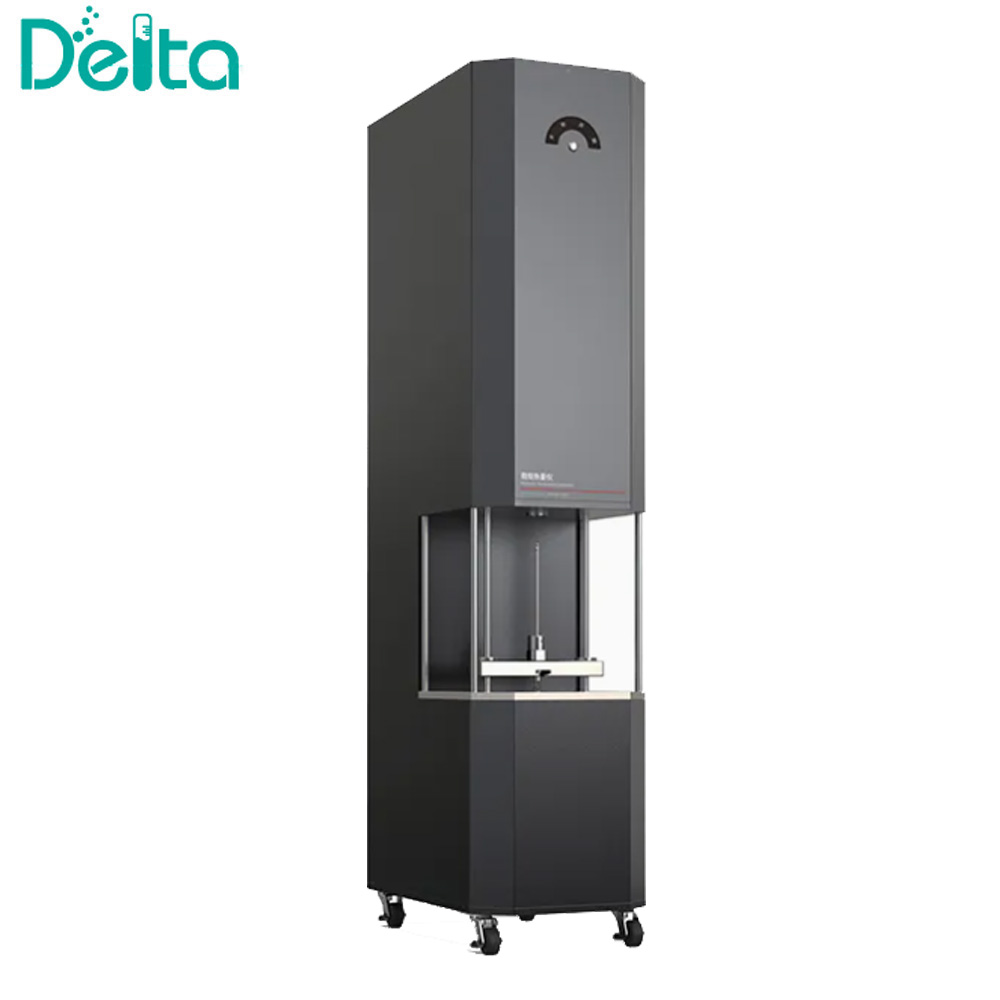

MCC Micro Combustion Calorimeter

Brief Introduction:

MCC Micro Combustion Calorimeter can determine basic chemical thermal values and predict the fire resistance of materials in a matter of minutes.

This technique can quickly determine parameters such as specific heat release rate (W/g), combustion heat (J/g), and ignition temperature (°C) on very small samples (1-10mg) with low cost, high accuracy, and typical repeatability of ±5%.

Reference Standards:

ASTM D7309-2007: Standard Test Method for Determining the Flammability of Plastics and Other Solid Materials by Microcombustion Calorimeter

EMC 89/336/EEC: Electromagnetic compatibility 89/336/EEC

LVD 72/23/EEC

BS EN 60204-1: Safety of machinery - Electrical equipment for machinery - Part 1: General requirements

BS EN 746-2: Industrial thermal processing equipment. Safety requirements for combustion and fuel handling systems

Main Features:

1. Integrated structure design, beautiful and generous;

2. Combustion furnace: program to control the temperature of combustion furnace heating to the specified temperature, constant temperature, temperature drift does not exceed 5K/h.

3. Equipped with overtemperature protection device to protect the safety of equipment and personnel during the test

4. Temperature range: room temperature -1000℃, imported electric heating wire, over temperature protection, high-performance heating elements, longer service life

5. Multiple cooling devices, easy to heat the instrument

6. Sample heating rate can be adjusted

7. The sample cup is equipped with a temperature sensor

8. The sample cup can be automatically moved to the combustion furnace, special design to ensure soft contact

9. The equipment provides anaerobic and aerobic environmental high temperature decomposition test mode

10. High precision MFC (mass flow controller), control air, oxygen, nitrogen gas intake, response time less than 1S, accuracy F.S±1%.

11. Imported oxygen sensor, range: 0-100%, T90< 6 s. Accuracy ±0.1%, linear range: F.S±1%

12. The equipment is fast in testing and convenient in testing

13. LABVIEW data acquisition software, configuration computer control

14. Displays the running status of devices in real time

15. Calibrate equipment and store calibration data results

16. Collect data during the test.

17. Heat release rate coefficient (W/g), combustion heat (J/g), ignition temperature (℃) and other parameters were calculated.
